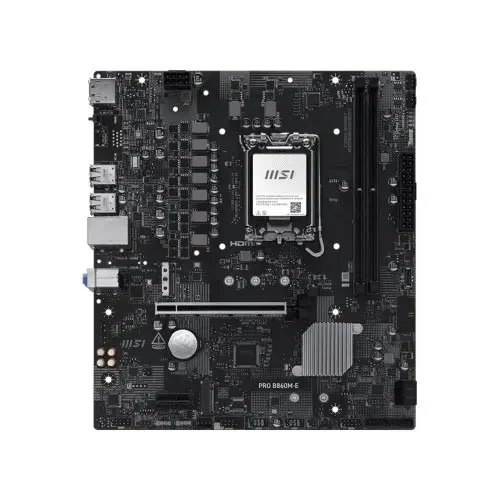

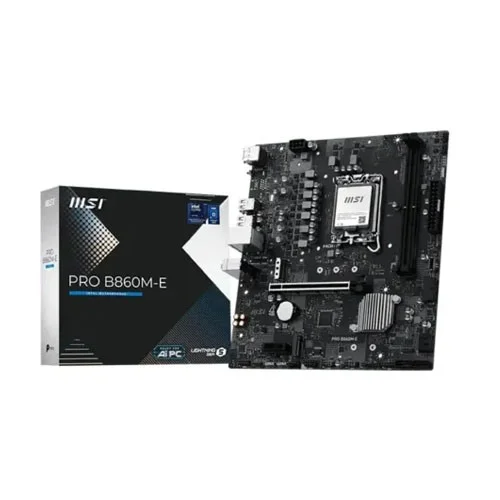

MSI PRO B860M-E LGA 1851 mATX Motherboard

MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
MSI PRO B860M-E LGA 1851 mATX Motherboard
  • Stock: In Stock
  • Model: PRO B860M-E
  • Product id:  30221
Based on 0 reviews. - Write a review
18,900৳
Ex Tax: 18,900৳
Add to Cart
Buy Now Ask Question
Add to Wish List Add to Compare
    • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
    • Supported RAM: 2x DDR5 UDIMM, Up to 9066 (OC) MT/s, Max 128GB
    • Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
    • Features: 2x M.2, Realtek 8126 5Gbps LAN, 7.1-Channel Audio
যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।
Key Features
Color
Basic Information
Supported CPU CPU Type:
Intel Core Ultra Processors (Series 2)
LGA 1851
Chipset INTEL B860
Form Factor mATX
220mmx243.84mm
Memory
Slots Number of Memory Slots: 2x UDIMM
Expansion Slots:
PCI
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Supported Memory Memory Type: DDR5
Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9066+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory 128GB
Graphics
Graphics 1x HDMI 2.1
1x DisplayPort 1.4
Connector & Ports
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage Storage:
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Others
Special Features LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED
Warranty Information
Warranty 3 years

MSI PRO B860M-E LGA 1851 mATX Motherboard

The MSI PRO B860M-E LGA 1851 mATX Motherboard is a compact and high-performance motherboard built for users looking to harness the power of the latest Intel Core Ultra Processors (Series 2). Powered by the Intel B860 chipset, this motherboard offers excellent stability, next-generation connectivity, and efficient performance for business, professional, and everyday computing. Its Micro-ATX form factor makes it an ideal choice for compact desktop systems without compromising on essential features. Equipped with two DDR5 UDIMM slots, the MSI PRO B860M-E supports up to 128GB of memory with overclocking speeds of up to 9066+ MT/s. It also supports Intel XMP 3.0, CUDIMM, dual-channel architecture, and memory overclocking, allowing users to maximize system responsiveness for multitasking, productivity, and demanding applications. For storage, the motherboard features two M.2 slots, including one PCIe 5.0 x4 M.2 slot for next-generation NVMe SSDs and one PCIe 4.0 x4 M.2 slot for additional high-speed storage. Four SATA 6Gb/s ports provide flexible options for connecting SSDs and hard drives, making it easy to expand storage capacity.

The MSI PRO B860M-E includes a PCIe 5.0 x16 slot for modern graphics cards and a PCIe 4.0 x1 slot for expansion devices. Display connectivity includes HDMI 2.1 and DisplayPort 1.4, supporting high-resolution displays when using compatible Intel processors with integrated graphics. Networking is powered by a Realtek 5Gbps LAN controller, delivering fast and reliable wired connectivity for gaming, streaming, and business applications. Additional features such as USB 10Gbps Type-C, customizable RGB headers, EZ Debug LED, and EZ Memory Detection LED simplify installation and troubleshooting. Backed by a 3-year manufacturing warranty, the MSI PRO B860M-E is a reliable and future-ready motherboard that combines DDR5 memory support, PCIe 5.0 connectivity, and premium performance for modern Intel desktop builds.

Key Features of MSI PRO B860M-E LGA 1851 mATX Motherboard

  • Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
  • Intel B860 chipset for reliable next-generation performance
  • Micro-ATX form factor for compact desktop builds
  • 2 x DDR5 UDIMM slots supporting up to 128GB memory
  • DDR5 memory overclocking support up to 9066+ MT/s
  • Supports Intel XMP 3.0, CUDIMM, and dual-channel memory
  • 1 x PCIe 5.0 x16 slot for next-generation graphics cards
  • 2 x M.2 slots including 1 x PCIe 5.0 x4 NVMe SSD slot
  • 4 x SATA 6Gb/s ports for flexible storage expansion
  • Realtek 5Gbps LAN for ultra-fast wired networking
  • HDMI 2.1 and DisplayPort 1.4 display outputs
  • USB 10Gbps Type-C and USB 5Gbps Type-A connectivity
  • 4 x EZ Debug LED and EZ Memory Detection LED for easy diagnostics
  • RGB and Addressable RGB headers for customizable lighting
  • 3-Year Manufacturing Warranty
