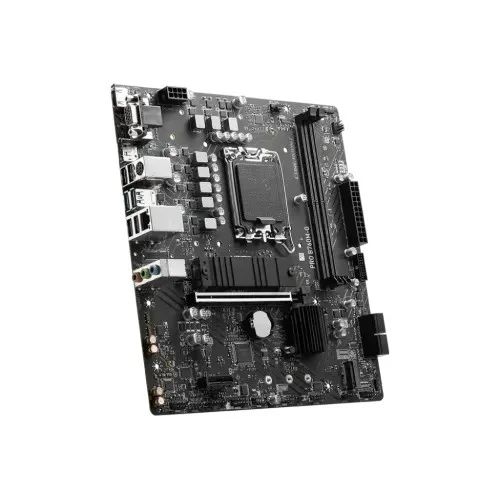

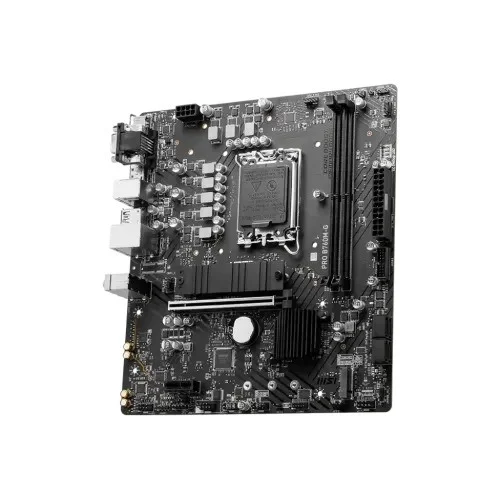

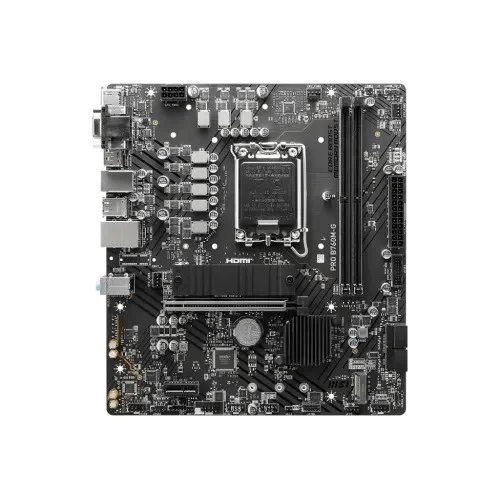

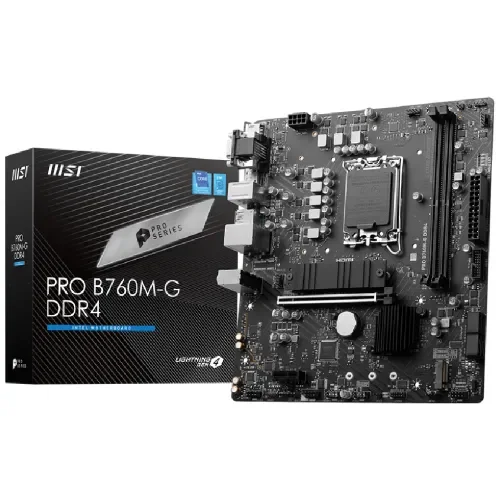

MSI PRO B760M-G DDR4 mATX Motherboard

Save: 3541৳ (21%)

MSI PRO B760M-G DDR4 mATX Motherboard

Stock: In Stock
Model: PRO B760M-G
Product id: 27467

Based on 0 reviews. - Write a review

13,499৳

17,040৳

Ex Tax: 13,499৳

EMI starts at 4,734৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Features: 2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN
Supported RAM: 2x DDR4, Max 64GB 4800(OC)
Graphics Output: 1x HDMI, 1x DP, 1x VGA

Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 220mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
Type	DDR4
Slots	2
Supported Memory	Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1x HDMI Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI PRO B760M-G DDR4 mATX Motherboard

MSI PRO B760M-G DDR4 mATX Motherboard is a reliable and feature-packed option for building a modern and efficient desktop system. Based on the Intel B760 chipset, this motherboard supports 12th and 13th Generation Intel Core processors, making it a versatile choice for both casual users and professionals seeking powerful performance. This micro-ATX motherboard is designed to balance compact size with robust functionality. It supports DDR4 memory with speeds up to DDR4-5333 (OC), allowing for smooth multitasking and improved overall system responsiveness. With four DIMM slots, users can install up to 128GB of RAM, providing plenty of capacity for memory-intensive tasks such as gaming, content creation, and video editing. Storage flexibility is a key feature of the PRO B760M-G DDR4. It includes dual M.2 slots for high-speed NVMe SSDs, ensuring fast boot times and quick data transfers, along with multiple SATA ports for traditional hard drives or SSDs. This setup accommodates a wide range of storage needs, from high-speed gaming systems to professional workstations. Connectivity options are abundant, with USB 3.2 Gen 1 and Gen 2 ports for faster data transfers and USB 2.0 ports for additional peripherals. The motherboard also features HDMI and DisplayPort outputs, enabling compatibility with high-resolution displays and offering crisp visuals for gaming or professional workflows. The Gigabit LAN port ensures stable and fast internet connectivity, while the Realtek HD Audio chipset provides clear and immersive sound for multimedia applications. MSI also includes their EZ Debug LED for simplified troubleshooting and an intuitive BIOS interface for easy configuration. Overall, the MSI PRO B760M-G DDR4 mATX Motherboard is a well-rounded and future-proof solution. It is ideal for users seeking a reliable platform for gaming, productivity, or everyday use without compromising on performance or expandability.
