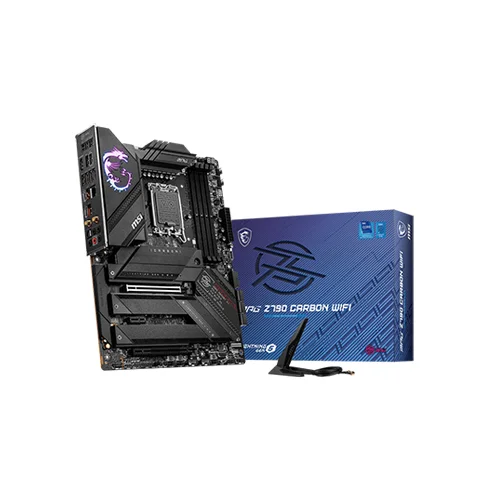

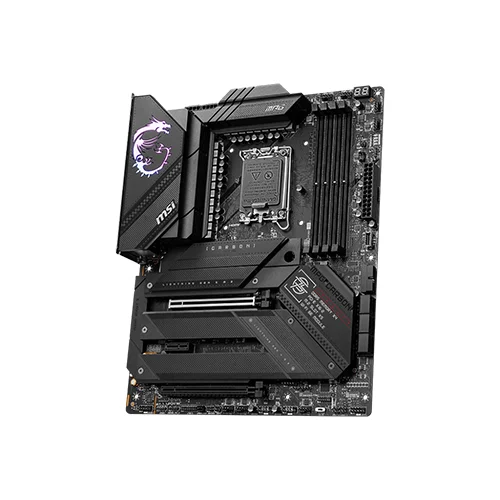

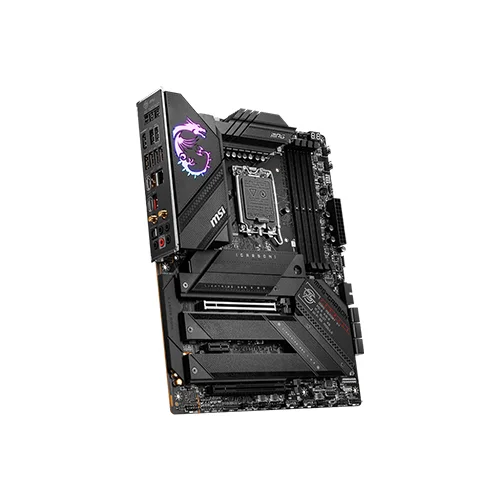

MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard
Save: 10001৳ (17%)
MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard
- Stock: In Stock
- Model: MPG Z790 CARBON WIFI
- Product id: 24607
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
- Supported RAM: 4x DDR5, Max 128GB, 7600+(OC) MHz
- Graphics Output: 1x HDMI
- : 2.5G LAN and Intel Wi-Fi 6E Solution
Quick Compare
| Product Details | ||||
| Product | MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard | MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard | ASUS ROG STRIX B850-I GAMING WIFI AMD Ryzen AM5 Mini-ITX Gaming Motherboard | MSI TRX40 PRO WIFI STRX4 ATX AMD MOTHERBOARD |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MPG Z790 CARBON WIFI | MAG X870E TOMAHAWK WIFI | ROG STRIX B850-I GAMING WIFI | MSI TRX40 PRO WIFI STRX4 ATX AMD MOTHERBOARD |
| Brand | MSI | MSI | ASUS | MSI |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Technical Information Supported CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold And Celeron® Processors LGA 1700 Chipset INTEL Z790 Memory 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. Overclocking Frequency: • 1DPC 1R Max Speed Up To 7600+ MHz • 1DPC 2R Max Speed Up To 6600+ MHz • 2DPC 1R Max Speed Up To 6400+ MHz • 2DPC 2R Max Speed Up To 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Graphics 1x HDMI™ Support HDMI™ 2.1 With HDR, Maximum Resolution Of 4K 60Hz* Slots 2x PCI-E X16 Slot 1x PCI-E X1 Slot PCI_E1 Gen PCIe 5.0 Supports Up To X16 (From CPU) PCI_E2 Gen PCIe 3.0 Supports Up To X1 (From Chipset) PCI_E3 Gen PCIe 4.0 Supports Up To X4 (From Chipset) Supported Storage 5x M.2 M.2_1 Source (From CPU) Supports Up To PCIe 4.0 X4 , Supports 2280/2260 Devices M.2_2 Source (From CPU) Supports Up To PCIe 5.0 X4 , Supports 22110/2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260 Devices M.2_4 Source (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260 Devices M.2_5 Source (From Chipset) Supports Up To PCIe 4.0 X4 / SATA Mode, Supports 2280/2260 Devices 6x SATA 6G *PCI_E1 Slot Will Be Gen5x8 When Installing M.2 SSD In The M2_2 Slot. Bluetooth Bluetooth® 5.3**, FIPS, FISMA LAN Intel® 2.5Gbps LAN Audio Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports Up To 32-Bit/384 KHz Playback On Front Panel USB Port 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT Connector (JTBT, Supports RTD3) 1x Tuning Controller Connector(JDASH) 2x Addressable V2 RGB LED Connector (JARGB_V2) 1x RGB LED Connector(JRGB) 1x TPM Pin Header(Support TPM 2.0) 4x USB 2.0 Ports 2x USB 3.2 Gen1 Type A Ports 1x USB 3.2 Gen 2x2 Type C Ports External I/O Ports Clear CMOS / Flash USB 3.2 Gen 1 5 Gbps (Type-A) 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors Smart Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out WiFi Intel® Wi-Fi 6E The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax DIMENSIONS 243.84mmx304.8mm Form Factor ATX Special Features 1x EZ LED Control Switch 1x 2-Digit Debug Code LED 4x EZ Debug LED HDMI 1x HDMI Others RAID: Supports RAID 0, RAID 1, RAID 5 And RAID 10 For SATA Storage Devices Supports RAID 0, RAID 1, RAID 5 And RAID 10 For M.2 NVMe Storage Devices * SATA_A1~A2 Do Not Support RAID Function. Warranty 3 Years MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard The MSI MPG Z790 CARBON WIFI Motherboard is an ATX motherboard that supports 13th/12th Gen Intel Core/Pentium/Celeron processors for the LGA 1700 socket. It features four DDR4 RAM slots for dual-channel memory and speeds up to 7600+(OC) MHz. The motherboard includes a PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2, and supports RAID 0, 1, 5, and 10 configurations. It offers multiple PCIe slots for GPUs and other adapter cards. The board is equipped with an enlarged heatsink, MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr for optimal performance and gaming experience. It also features 2.5 GbE Intel LAN, Wi-Fi 6E, and Bluetooth 5.2 for fast and stable network connections. The Realtek ALC4080 audio codec provides 7.1 channel surround sound, and the rear ports support analog or digital output. The motherboard has various USB ports, DisplayPort, HDMI, and internal headers for additional features. It comes with a 3-year warranty... | MSI MAG X870E TOMAHAWK WIFI AM5 ATX MotherboardThe MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard is a premium choice for gamers, enthusiasts, and creators seeking cutting-edge features and high-performance support for AMD's latest processors. Built on the powerful AMD X870E chipset, it supports Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, delivering future-ready performance and advanced capabilities. Designed in the ATX form factor (243.84mm x 304.8mm), this motherboard boasts excellent expandability and robust build quality. It supports up to 256GB of DDR5 RAM across four DIMM slots with overclocked speeds up to 8400+ MHz, optimized for extreme performance with AMD EXPO™ technology and dual-channel architecture. The board features four M.2 slots, including two PCIe 5.0 x4 lanes directly from the CPU, ensuring ultra-fast storage speeds ideal for gaming and productivity workloads. Additionally, four SATA 6Gb/s ports and support for RAID 0, 1, 5, and 10 provide ample flexibility for data storage configurations. Graphics and expansion are well supported with three PCIe x16 slots, the primary being PCIe 5.0, delivering top-tier GPU bandwidth. The MAG X870E also offers elite connectivity with Wi-Fi 7, Bluetooth 5.4, and Realtek 5G LAN for ultra-fast and stable networking. For visuals, the board includes HDMI 2.1 (8K@60Hz) and dual USB4 Type-C DisplayPort outputs (4K@60Hz), ensuring compatibility with high-resolution displays. A rich array of USB ports (including USB 40Gbps, 20Gbps, and 10Gbps Type-C) supports all modern peripherals and fast data transfer. With EZ Debug LEDs, high-fidelity Realtek ALC4080 audio, RGB headers, and reinforced power delivery, the MSI MAG X870E TOMAHAWK WIFI stands out as a powerhouse platform, backed by a 3-year warranty, perfect for high-end AM5 system builds... | ASUS ROG STRIX B850-I GAMING WIFI AMD Ryzen AM5 Mini-ITX Gaming MotherboardASUS ROG STRIX B850-I GAMING WIFI is a high-performance Mini-ITX motherboard designed for compact yet powerful gaming setups. Built for AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard features an AM5 socket and B850 chipset, offering cutting-edge performance and efficiency.Supporting DDR5 memory up to 8400+ MT/s, the motherboard ensures seamless multitasking and high-speed computing. Its dual-channel architecture with AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) provides optimized memory performance for gaming and content creation.For graphics, the motherboard includes an HDMI 2.1 port and USB Type-C® display output, supporting 4K @ 60Hz resolution for immersive visuals. The PCIe 5.0 x16 slot ensures high-speed GPU connectivity, making it ideal for high-end gaming and professional workloads.Storage options include two PCIe 5.0/4.0 M.2 slots and two SATA 6Gb/s ports, providing ultra-fast data access and seamless game loading. The Intel 2.5Gb Ethernet, Wi-Fi 7, and Bluetooth 5.4 ensure lag-free networking, whether wired or wireless.To maintain optimal cooling, ASUS integrates multiple heatsinks, fan headers, and an AIO pump header for efficient thermal management. The ROG SupremeFX 7.1 Surround Sound audio codec delivers studio-grade sound quality, enhancing the gaming experience.Designed for durability and ease of use, the motherboard features M.2 Q-Latch, PCIe Slot Q-Release Slim, and SafeSlot technology. With BIOS FlashBack™, Clear CMOS button, and pre-mounted I/O shield, users get a seamless installation and overclocking experience.The ASUS ROG STRIX B850-I GAMING WIFI is the perfect Mini-ITX motherboard for gamers and enthusiasts looking for premium performance, advanced connectivity, and an immersive gaming experience in a compact form factor.FeaturesOptimized for AMD Ryzen 9000, 8000 & 7000 Series with AM5 socketMini-ITX form factor for compact gaming buildsPCIe 5.0 x16 slot for high-speed GPU connectivitySupports DDR5 memory up to 128GB & 8400+ MT/sDual PCIe 5.0 M.2 slots for ultra-fast storage performanceWi-Fi 7 & Intel 2.5Gb Ethernet for high-speed networkingROG SupremeFX 7.1 Surround Sound for immersive audioMultiple cooling solutions including fan & AIO pump headersRobust build quality with SafeSlot, Q-Latch & Q-Release features.. | Specification: AMD TRX40 Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4 Supports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz 1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz .. |
