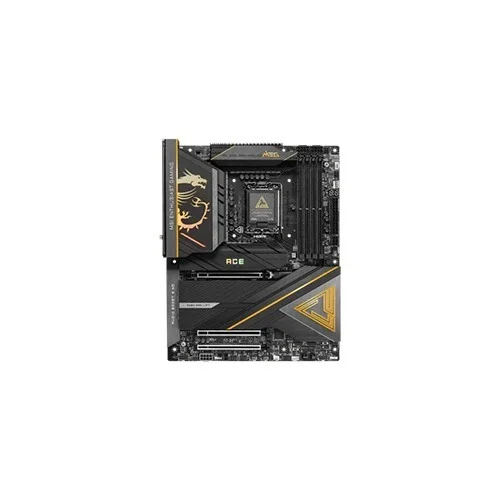

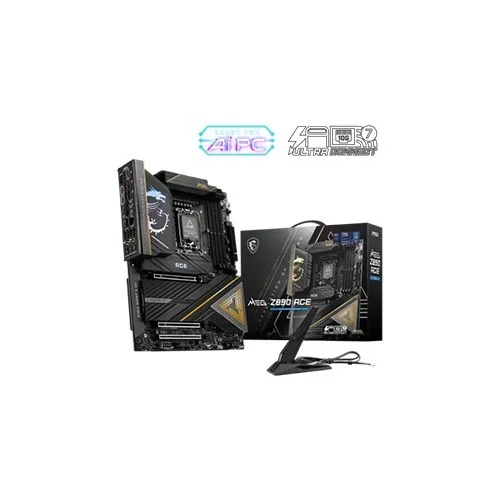

MSI MEG Z890 ACE LGA 1851 ATX Intel Motherboard

Save: 1600৳ (2%)

MSI MEG Z890 ACE LGA 1851 ATX Intel Motherboard

Stock: In Stock
Model: MEG Z890 ACE
Product id: 27252

Based on 0 reviews. - Write a review

103,900৳

105,500৳

Ex Tax: 103,900৳

EMI starts at 36,434৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Chipset INTEL Z890
Form Factor ATX
Socket LGA 1851
4x DDR5 UDIMM

Basic Information
Chipset	INTEL Z890
CPU Socket	Supports Intel® Core™ Ultra Processors (Series 2)
Audio	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on the front panel
General Information
Memory Type	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Connector & Ports
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Network & Connectivity
Lan	Marvell® AQC113CS 10Gbps LAN
WiFi	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth	Supports Bluetooth 5.4**, MLO, 4KQAM
Ports Connector and Slots
HDMI	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
Physical Specification

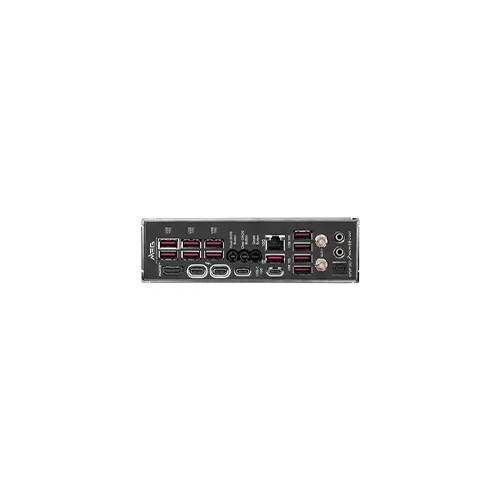

USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Warranty Information
Warranty	3 Years

MSI MEG Z890 ACE LGA 1851 ATX Intel Motherboard

MSI MEG Z890 ACE LGA 1851 ATX Intel Motherboard is a premium choice for enthusiasts and professionals seeking exceptional performance and expandability. Designed to support Intel’s latest Core Ultra Processors (Series 2) with the LGA 1851 socket, this motherboard offers cutting-edge features tailored to maximize system potential. This motherboard supports up to 256GB of DDR5 memory across four slots, ensuring enough capacity for demanding applications. Its overclocking capabilities are notable, with memory speeds reaching up to 9200 MT/s in a single-rank configuration. Featuring support for Intel XMP 3.0, dual-controller dual-channel architecture, and non-ECC unbuffered memory, the board delivers exceptional flexibility for performance tuning. The inclusion of the Realtek ALC4082 codec paired with an ESS9219Q DAC provides an immersive audio experience, supporting 7.1-channel audio and 32-bit/384 kHz playback. Connectivity is another highlight with 10Gbps Marvell LAN for ultra-fast wired networking and Intel Killer Wi-Fi 7 for cutting-edge wireless performance. Bluetooth 5.4 ensures seamless device pairing, while MU-MIMO and 4KQAM enhance data transfer reliability. For expansion, the motherboard features three PCI-E x16 slots, two of which support PCIe 5.0, offering ample bandwidth for GPUs and other devices. Internal connectivity includes multiple fan headers, RGB lighting connectors, and even advanced options like a Thunderbolt 5 card connector for professionals requiring next-level data transfer speeds. The EZ Conn-header and comprehensive internal I/O ports simplify building and managing your PC. USB connectivity is abundant, featuring 11 USB 10Gbps Type-A ports, 2 USB 10Gbps Type-C ports, and a USB 20Gbps Type-C port on the front panel. This wealth of ports makes managing peripherals effortless. Additionally, the HDMI 2.1 port supports resolutions up to 8K at 60Hz, ensuring compatibility with modern high-resolution displays. As an ATX form factor motherboard, the MEG Z890 ACE is compatible with a wide range of cases. Its robust power design includes multiple power connectors for the CPU, PCIe, and general use, ensuring stability under high-performance loads. In summary, the MSI MEG Z890 ACE is a high-performance motherboard equipped with top-tier features suitable for gaming, content creation, and professional workflows. Its extensive connectivity, overclocking potential, and premium build quality make it a standout choice for power users.
