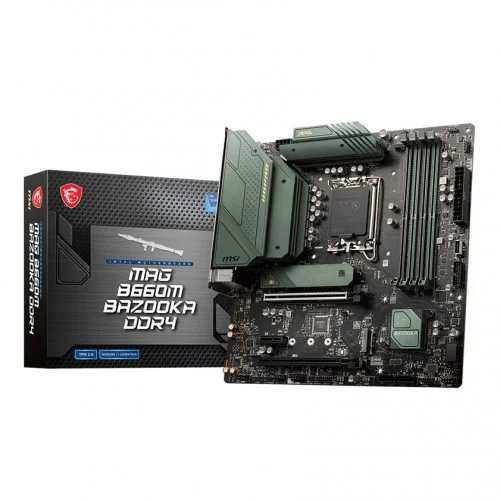

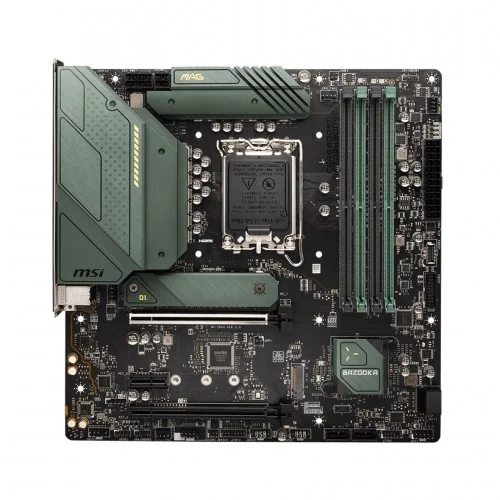

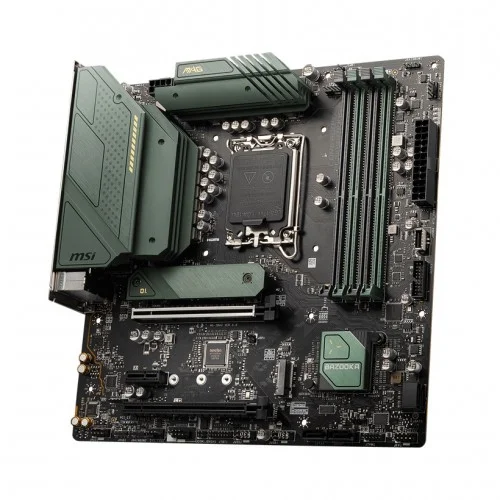

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard
Save: 5500৳ (26%)
Out Of Stock
MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard
- Stock: Out Of Stock
- Model: MAG B660M BAZOOKA DDR4
- Product id: 23947
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supports 12th Gen Intel processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- 4x SATA 6Gb/s ports, 2x M.2 slots
- Onboard 2.5G LAN plus Gigabit LAN
Quick Compare
| Product Details | ||||
| Product | MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard | Asus EX-B650M-V7 AM5 micro-ATX Motherboard | GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard | GIGABYTE B760M D2H DDR5 INTEL MOTHERBOARD |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MAG B660M BAZOOKA DDR4 | EX-B650M-V7 | B760M D3HP DDR4 | B760M D2H |
| Brand | MSI | ASUS | GIGABYTE | GIGABYTE |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU Supports 12th Gen Intel Core Processors Processor socket LGA1700 Chipset Intel B660 Chipset Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots PCI 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset) Memory Type DDR4 Slots 4x DDR4 memory slots Supported Memory 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory Support up to 128GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Connector & Ports HDMI 1x HDMI 2.1 with HDR port Display Port (s) 1x DisplayPort 1.4 port with HBR3 USB (s) Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector LAN Port (s) 1x Realtek 8125BG 2.5Gbps LAN controller Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processorsSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years Others Special Features Supports 2-Way AMD® CrossFire Technology MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard The MSI MAG B660M BAZOOKA DDR4 Motherboard (China Version) is compatible with LGA 1700 sockets and 12th generation Intel Core, Pentium Gold, and Celeron CPUs. Up to 4800+(OC), MHz DDR4 Memory is supported. The Premium Thermal Solution is included with this motherboard. For high-performance systems and continuous operation, it is outfitted with an expanded cooling design and an M.2 Shield Frozr. Additionally, this motherboard includes a 2.5G LAN, which supports upgraded network solutions for business and multimedia applications. provides a quick, reliable, and secure network connection. The MSI MAG B660M BAZOOKA DDR4 motherboard uses 12th Gen Intel CPUs and has the newest Lightning Gen 4 M.2, the industry's fastest onboard storage solution with up to 64 Gb/s transfer speed. This motherboard's Lightning M.2 technology enables PCIe Gen 4 operation and optimizes performance for NVMe-based SSDs. Additionally, it includes Steel armor PCIe slots and an integrated USB 3.2 Gen 2x2 connector with a 20Gbps transfer speed, which is 4X faster than USB 3.2 Gen 1. Has AMD Crossfire support. The 2.5Gbps LAN offers amazing data transfer speed in this case, outpacing a standard Gigabit LAN. This is a top-notch gaming solution. The latest MSI MAG B660M BAZOOKA DDR4 motherboard comes with 03 years of warranty. .. | SpecificationSupported CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop ProcessorsChipsetAMD B650BIOS256 Mb Flash ROM, UEFI AMI BIOSForm Factormicro-ATX Form Factor9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layersPCIAMD Ryzen 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD B650 Chipset1 x PCIe 4.0 x1 slotTypeDDR5Slots2 x DIMM slotsSupported Memory8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO)OptiMem IIMaximum Memory96GBGraphics1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)HDMI1x HDMIUSB (s)Rear USB (Total 8 ports)2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsLAN Port (s)1 x Realtek 2.5Gb EthernetSupported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD B650 Chipset4 x SATA 6Gb/s portsRAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10Audio3 x Audio jacksInternal I/O PortsBack Panel I/O Ports2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and Cooling-related1 x 4-pin CPU Fan header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x 10-1 pin System Panel headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designNon-stop Action- Lightning BootNon-stop Challenger- ASUS iCafe labs certifiedNon-stop Durability- Luminous anti-moisture coating- USBGuardManufacturing Warranty3 YearsAsus EX-B650M-V7 AM5 micro-ATX Motherboardlightning-fast data transfer. Realtek 2.5Gb Ethernet provides a robust internet connection, and HDMI and USB 3.2 Gen 2 ports offer versatile connectivity. Its anti-moisture layer ensures durability, and the Lightning startup function facilitates quick game access. Featuring LANGuard, SafeSlot Core+, USBGuard, stainless-steel rear I/O, and 5X Protection III, it offers robust endurance. This motherboard caters not only to gamers but also to iCafés and enterprises. The gaming-centric features include PCIe 4.0 compatibility for fast data transfer, a 128Gbps M.2 slot for high-speed storage, and Realtek 2.5Gb Ethernet. ASUS Beyond VR compatibility ensures smooth virtual reality gaming. ASUS iCaf LAB has validated it for reboot and compatibility testing in diskless systems. The motherboard is widely compatible with various devices, making it a reliable and high-performance choice for diverse users.Features:DDR5 & PCIe 5.0 for next-gen speedRealtek 2.5Gb Ethernet for smooth online gamingLuminous Anti-moisture coating for enhanced durabilityLightning Boot for fast startup timesASUS Beyond VR compatibilityiCaf LAB certified for diskless systems.. | GIGABYTE B760M D3HP DDR4 Micro ATX MotherboardThe GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is a feature-rich and powerful motherboard designed for users looking to build a high-performance PC. It supports the LGA1700 socket, compatible with 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, providing excellent processing power for demanding tasks such as gaming, content creation, and multitasking. The motherboard is powered by the Intel B760 Express Chipset, ensuring stability and efficient performance. Equipped with four DDR4 DIMM slots, the B760M D3HP supports up to 128GB of memory with speeds up to 5333 MHz (O.C.), offering excellent memory overclocking potential for users seeking higher performance. It also supports ECC and non-ECC memory configurations, providing flexibility for different types of setups. For expansion, the motherboard features a PCIe 4.0 x16 slot for a high-performance graphics card or NVMe SSD. Additionally, there are two PCIe 3.0 x1 slots for other expansion cards. Storage support includes two M.2 connectors for PCIe 4.0 SSDs and four SATA 6Gb/s connectors, with RAID support for managing multiple drives and enhancing data security and performance. The GIGABYTE B760M D3HP offers multiple connectivity options, including USB 3.2 Gen 1 and USB 2.0 ports, HDMI, DisplayPort, and a D-Sub port, providing comprehensive display and peripheral support. It also features Realtek GbE LAN for high-speed network connections and Realtek Audio CODEC for immersive sound quality. Additional features include support for RGB LED strip headers, Q-Flash Plus for easy BIOS updates, and GIGABYTE Control Center (GCC) for enhanced system management. Backed by a 3-year warranty, this motherboard is an excellent choice for building a powerful and efficient system... | Specification Chipset Intel® B760 Express Chipset Memory Support For DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 2 X DDR5 DIMM Sockets Supporting Up To 96 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Graphics Integrated Graphics Processor-Intel® HD Graphics Support Slots CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 Chipset: 2 X PCI Express X1 Slots, Supporting PCIe 3.0 And Running At X1 LAN Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out USB Port Chipset: 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 4 X USB 2.0/1.1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+2 USB 2.0 Hubs: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Internal I/O Ports 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 2 X System Fan Headers 1 X Addressable LED Strip Header 1 X RGB LED Strip Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB 3.2 Gen 1 Header 3 X USB 2.0/1.1 Headers 1 X Trusted Platform Module Header 1 X Serial Port Header 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper Form Factor Micro ATX Form Factor; 24.4cm X 22.5cm BIOS 1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Software Features Norton® Internet Security (OEM Version) LAN Bandwidth Management Software Warranty 3 Years GIGABYTE B760M D2H INTEL MOTHERBOARD PRICE IN BD The GIGABYTE B760M D2H Intel Motherboard - the epitome of cutting-edge technology and performance for your computing needs. Designed to support 13th and 12th Gen Series Intel processors, this motherboard is a powerhouse of unparalleled performance and versatility. At the heart of this board lies the Intel® Socket LGA 1700, providing a stable and reliable platform for your high-end computing demands. The Hybrid 6+2+1 Phases Digital VRM Solution ensures optimal power delivery, guaranteeing smooth and stable operation even under heavy loads. Next-generation storage options abound, with two PCIe 4.0 x4 M.2 connectors for lightning-fast data access. The EZ-Latch feature on the PCIe 4.0x16 slot ensures easy and quick graphics card installation and removal. This micro ATX motherboard doesn't compromise on connectivity either. With HDMI and D-Sub ports, you can easily connect your display devices for immersive visuals. The GIGABYTE B760M D2H Intel Motherboard incorporates Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers that intelligently regulate fan speeds for optimal cooling and quiet operation. In conclusion, the GIGABYTE B760M D2H Intel Motherboard combines top-notch performance, future-proof features, and user-friendly designs, making it an ideal choice for enthusiasts, gamers, and professionals alike. Upgrade your system today and experience a whole new level of computing excellence. Find the GIGABYTE B760M D2H Intel Motherboard at Techland BD and unlock the full potential of your PC. .. |
