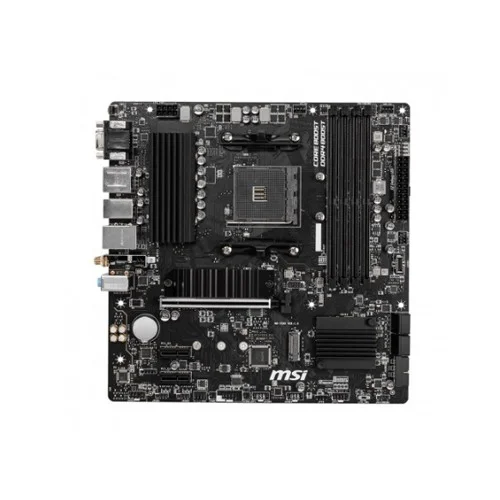

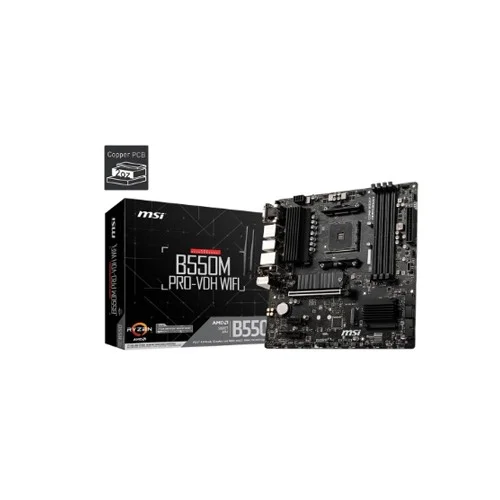

MSI B550M Pro-VDH WiFi AM4 AMD Micro-ATX Motherboard
Save: 2001৳ (11%)
MSI B550M Pro-VDH WiFi AM4 AMD Micro-ATX Motherboard
- Stock: In Stock
- Model: B550M Pro-VDH WiFi
- Product id: 27426
15,499৳
17,500৳
Ex Tax: 15,499৳
- M.2 SHIELD FROZR
- Supports DDR4 4400+ (OC)
- PCB with 2OZ Thickened Copper
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
| Basic Information | |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots |
| Memory | |
| Type | Dual-channel memory architecture |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Display Port (s) | 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek 8111HN Gigabit LAN controller |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| Others | |
| Special Features | WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
| Warranty Information | |
| Warranty | 03 Years Warranty |
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
The MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard is a powerful and versatile solution designed to meet the demands of modern computing. It supports AMD Ryzen 5000/4000G Series and 3rd Generation Processors, making it an ideal choice for performance enthusiasts and gamers. Built on the AMD B550 chipset, this motherboard ensures optimal compatibility and performance. The motherboard features a Micro-ATX form factor, measuring 24.4 cm x 24.4 cm, making it compact and suitable for smaller PC builds. It supports dual-channel DDR4 memory with four memory slots, allowing a maximum capacity of 128GB. With support for memory speeds of up to 4400+ MHz in A-XMP OC mode, it ensures blazing-fast performance for intensive applications. For expansion, it offers 1x PCIe 4.0/3.0 x16 slot and 2x PCIe 3.0 x1 slots, providing flexibility for graphics cards and other components. Storage options include 4x SATA 6Gb/s connectors and 2x M.2 slots, ensuring ample space for high-speed storage solutions. The graphics capabilities include 1x HDMI 2.1 port and 1x DisplayPort, both supporting resolutions up to 4096x2160 @60Hz, ideal for high-quality video output. Connectivity is robust with Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, Realtek Gigabit LAN, and multiple USB 3.2 Gen 1 and USB 2.0 ports. Additional features include 7.1-channel high-definition audio, RGB lighting connectors, and fan headers for efficient cooling. The motherboard is built with durability and reliability in mind, backed by a 3-year warranty. Whether you're building a gaming rig or a professional workstation, the MSI B550M Pro-VDH Wi-Fi offers a perfect combination of performance, connectivity, and expandability.
