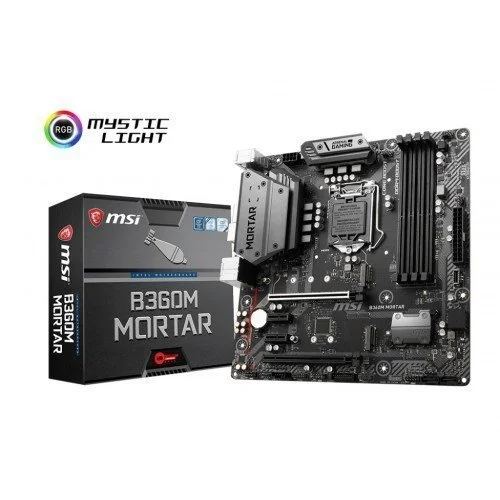

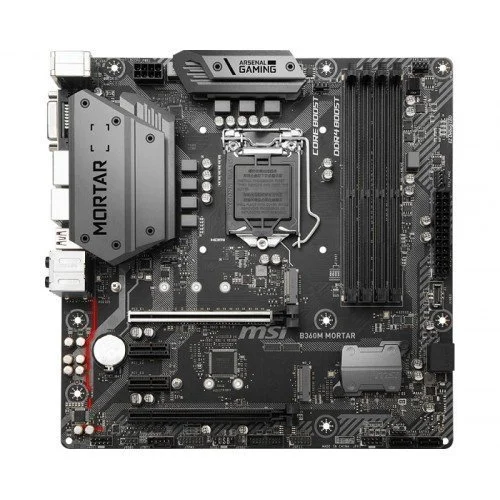

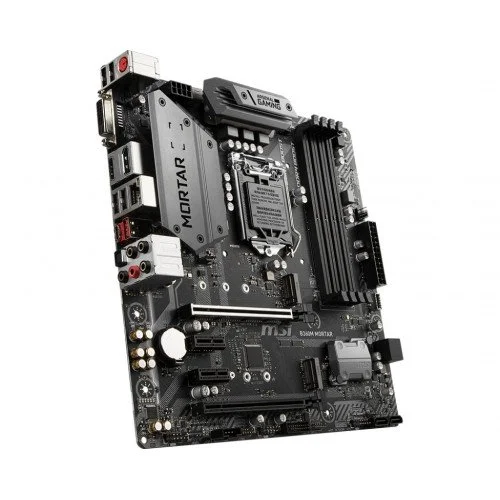

MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard
Save: 400৳ (5%)
Out Of Stock
MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard
- Stock: Out Of Stock
- Model: Model-3140
- Product id: 16903
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket • Twin Turbo M.2 • Supports DDR4, up to 2666 MHz • Extended Heatsink Desig
Quick Compare
| Product Details | ||||
| Product | MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard | Asus PRIME A520M-R AM4 micro ATX Motherboard | OCPC X3 RGB 8GB DDR4 3200MHZ DESKTOP RAM WHITE | Montech AIR 1000 Premium ATX Mid Tower Casing (White) |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | Model-3140 | PRIME A520M-R | OCPC X3 RGB 8GB WHITE | Montech AIR 1000 White |
| Brand | ASUS | OCPC | ||
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |

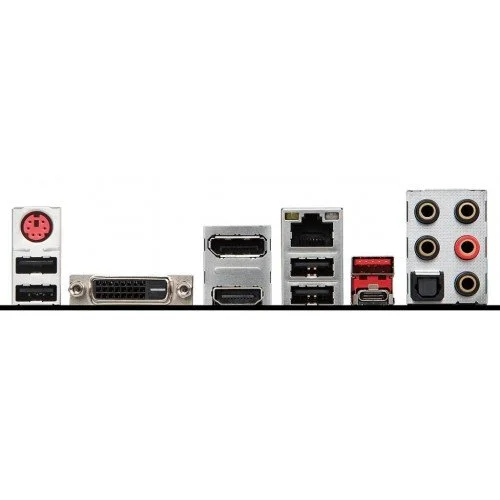

| Summary | Specification: Basic Information Supported CPU Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151 Chipset Intel® B360 Chipset Form Factor Micro-ATX Form Factor Expansion Slots PCI 2 x PCIe 3.0 x16 slots (support x16/x4 modes) 2 x PCIe 3.0 x1 slots M.2 Socket 2 x M.2 slots (Key M) Memory Type Dual channel memory architecture Slots 4 x DDR4 memory slots Supported Memory Supports DDR4 2666/ 2400/ 2133 MHz Supports non-ECC UDIMM memory Supports Intel® Extreme Memory Profile (XMP) Maximum Mamory 64 GB Graphics Graphics 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz Connector & Ports HDMI 1 x HDMI™ port Display Port (s) 1 x DisplayPort port USB (s) 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector) LAN Port (s) 1 x Intel I219-V Gigabit LAN controller Supported Storage 4 x SATA 6Gb/s ports 2 x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1 M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2 Intel® Optane™ Memory Ready ,supported on M2_2 3 SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. Audio Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Warranty Information Manufacturing Warranty 03 years What is The MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard Price in Bangladesh? Creatus Computer offers you MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard with the best price in Bangladesh. The latest price of MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard in Bangladesh is 8400৳. You can buy the MSI B360M Mortar 9th and 8th Gen DDR4 Micro-ATX Motherboard at the best price from our website or visit our showroom. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe to our Youtube channel for reviews of gadget Products. Enjoy our Home delivery service if you are located inside the Dhaka City Area. .. | Asus PRIME A520M-R AM4 micro ATX MotherboardASUS PRIME A520M-R AM4 micro-ATX motherboard is a reliable and feature-rich platform designed for AMD Ryzen desktop processors, including the 5000, 5000 G-Series, 4000 G-Series, and 3000 Series. Built on the AMD A520 chipset, it offers essential connectivity and performance features tailored for mainstream users and office builds. This motherboard supports dual-channel DDR4 memory up to 64GB, with speeds up to DDR4 5100MHz (OC). It includes 1 PCIe 3.0 x16 slot and 1 PCIe 3.0 x1 slot, offering flexibility for graphics and expansion cards. Storage options include 1 M.2 slot (PCIe 3.0 x4 & SATA) and 4 SATA 6Gb/s ports, allowing fast SSD and traditional HDD configurations. For connectivity, it provides six rear USB ports (four USB 5Gbps and two USB 2.0) and additional internal headers for more USB ports. The board also features Realtek 1Gb Ethernet with ASUS LANGuard for stable and secure networking. In terms of audio, it offers Realtek 7.1 Surround Sound High Definition Audio CODEC with premium components and shielding for clear and immersive sound. It supports HDMI output for modern displays, making it suitable for setups without a dedicated graphics card. ASUS PRIME A520M-R is equipped with ASUS 5X Protection III technologies, ensuring durability through features like stainless-steel back I/O, overvoltage protection, and DIGI+ VRM. Bundled with Armoury Crate, AI Suite 3, and other ASUS-exclusive software, it delivers an easy and efficient user experience. It comes with a 3-year manufacturer warranty.Features Of Asus PRIME A520M-R AM4 micro ATX MotherboardSupports AMD Ryzen™ 5000, 4000 G-Series, 3000 Series CPUs.AMD A520 chipset with micro-ATX form factor.2 x DDR4 DIMM slots, up to 64GB, 5100MHz (OC).1 x PCIe 3.0 x16 slot and 1 x PCIe 3.0 x1 slot.1 x M.2 slot (PCIe 3.0 x4 & SATA), 4 x SATA 6Gb/s ports.Realtek 7.1 Surround Sound HD Audio CODEC.1 x HDMI port for integrated graphics.Realtek 1Gb Ethernet with ASUS LANGuard.6 rear USB ports (4 x USB 5Gbps, 2 x USB 2.0).ASUS 5X Protection III with DIGI+ VRM and SafeSlot Core.ASUS Armoury Crate and AI Suite 3 software support.3-year manufacturing warranty... | Specification Technical Information Series X3 RGB Capacity 8GB Memory Type DDR4 Bus-Speed 3200MHz Single/Dual Sticks Single Latency CL16-20-20-40 Voltage 1.35V Color White Features Unbuffered, Non-ECC Height 46.9mm / 1.85inch Warranty Limited Lifetime OCPC X3 RGB 8GB DDR4 3200MHZ DESKTOP RAM WHITE The OCPC X3 RGB 8GB DDR4 3200MHz Desktop RAM (White) is the perfect addition to any gaming or high-performance PC build. With a sleek white design and RGB lighting, this RAM will not only enhance your system's performance but also add a stylish touch to your setup. This RAM is part of the X3 RGB series, which means it boasts impressive speed and reliability. It has a capacity of 8GB and operates on a single channel. The tested speed of the RAM is an impressive 3200MHz, which ensures fast data transfer and processing speeds. The latency of this RAM is CL16-20-20-40, which means it has a quick response time and can quickly access stored data. The voltage required for this RAM to operate is 1.35V, making it energy-efficient and reducing overall power consumption in your system. This product is unbuffered and non-ECC error checking, meaning it is ideal for gamers and those looking to improve their PC performance without sacrificing stability. At 46.9mm / 1.85 inches tall, it fits easily into most desktop setups. .. | Montech AIR 1000 Premium ATX Mid Tower Casing (White) The Complete Premium Experience Being the Flagship Model from the AIR series, the Montech AIR 1000 Premium ATX Mid Tower Casing (White) continues the series DNA with unbeatable cooling performance, also with all around improvements on details and materials. The AIR 1000 Premium edition comes with both Mesh and Tempered Glass front panels. In the front there're 3 140mm ARGB fans and a single 120mm ARGB exhaust fan in the back. Giving you complete control of not only your lighting but also your front panel style. Free to Style Front Panel The AIR 1000 Premium comes with two front panels, a Mesh panel for added airflow and Tempered Glass panel for added show. Switch to whatever style you want when you want. Extreme Cooling Performance With 3x 140mm ARGB fans in the front, 1x 120mm ARGB fan at rear, plus top and back aerodynamic openings, the AIR 1000 Premium effectively keeps temps in control even during high loads. Superior ARGB Lighting Show The 4x pre-installed ARGB fans can be controlled by either ARGB compatible motherboard software or from the front panel LED control button, with a total of 9 effects. Innovative Quick Slide Dust Filter The innovative Quick Slide Dust Filter brings easy to manage dust protection, along with fine mesh Anti-Dust Screens on the top and bottom for an all around dust free experience. Smart Easy Cable Management With a total of 7x pre-installed cable management grommets and 3x Velcro loops, clean tidy cable management is easier than ever. Safer Better Faster The specialized swivel opened Tempered Glass side panel makes it easier for users to open and detach the side panel. The zero drill hole design also improves glass structural integrity. High-end Components Supported With a max supported GPU card length of 340mm, support for 165mm tall top of the line tower AIR cooler and 180mm long PSU, the AIR 1000′s lavish internal spacing removes all build concerns. Specifications Product Name AIR 1000 Premium Available Color White Dimensions 416*220*495mm (Case), 522*284*486 (Carton)/7.25kg/8.38kg Motherboard Support ATX/Micro ATX/Mini ITX Expansion Slots 7 Drive Bays 5.25" = 0 2.5" = 4 3.5" or 2.5" = 2 I/O Port USB 2.0*1, USB 3.0*2, Audio*1, mic*1, LED Button Pre-installed Fan(s) Front : 140mm*3 (ARGB Fan) Rear : 120mm*1 (ARGB Fan) Fan Support Front : 120/140mm*3 Rear : 120mm*1 Top : 120mm*2 Inside : 120mm*2 Radiator Support Front : 120 / 140 / 240 / 280 /360mm Rear : 120mm Top : 120 / 140 / 240mm Clearance VGA : 340mm/310MM (If installed front radiator) CPU Cooler : 165mm PSU : 180mm High-End Power Supply (200mm if HDD cage removed) Dust Filters Front, Bottom Lighting support ARGB Lighting Controller *1 Fan Include 1v4 DC 3PIN fan splitter .. |
