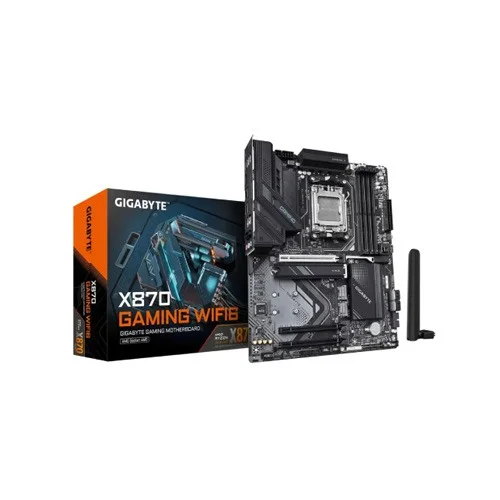

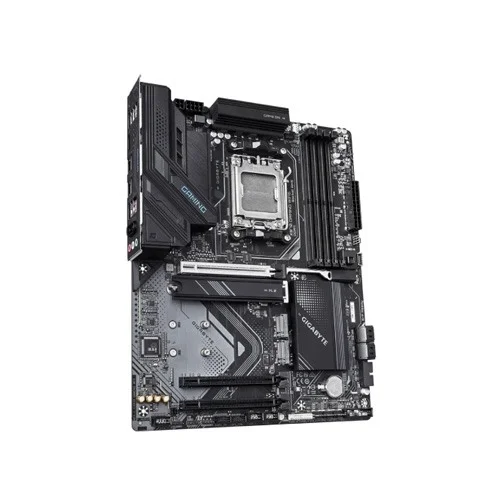

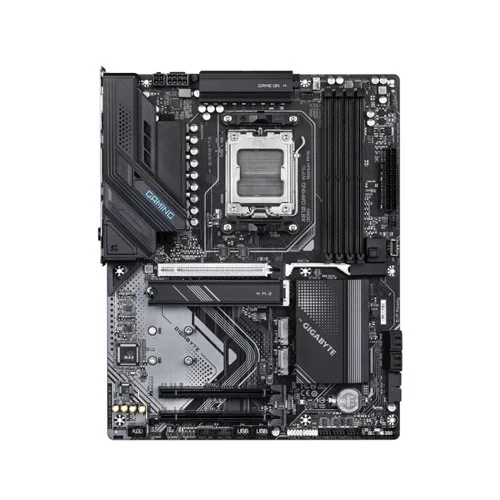

GIGABYTE X870 GAMING WIFI6 DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Model: X870 GAMING WIFI6
- Product id: 28347
- Supports AMD Ryzen 9000/8000/7000 CPUs
- DDR5 up to 8000MHz, dual-channel memory
- USB4 Type-C & HDMI 2.1 display outputs
- WiFi 6, 2.5GbE LAN & PCIe Gen5 SSD support
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors |
| Chipset | AMD X870 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | CPU+ASMedia USB4 controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 4 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE X870 GAMING WIFI6 DDR5 AMD AM5 ATX Motherboard
The GIGABYTE X870 GAMING WIFI6 DDR5 AMD AM5 ATX Motherboard is a cutting-edge platform designed for next-gen performance with AMD Ryzen 9000, 8000, and 7000 series processors. Built on the advanced AMD X870 chipset, this motherboard supports DDR5 memory up to 8000MHz (OC) and accommodates up to 256GB across four DIMM slots, ensuring lightning-fast multitasking and future-proof memory support.With robust PCIe expansion, including PCIe 5.0 x16 from the CPU and PCIe 4.0/3.0 from the chipset, this board is ideal for high-performance graphics cards and NVMe SSDs. For storage, it includes three M.2 slots (one supporting PCIe Gen5), RAID 0/1/5/10 support, and four SATA ports, offering ultra-fast and flexible storage options.The motherboard excels in connectivity with USB4 USB Type-C, HDMI 2.1, USB 3.2 Gen2, and integrated WiFi 6 (802.11ax) with Bluetooth 5.3. It also features Realtek 2.5GbE LAN for high-speed networking and Realtek 7.1-channel HD Audio for immersive sound.Designed with gamers and enthusiasts in mind, it includes RGB headers, Smart Fan control, and support for GIGABYTE Control Center (GCC) for system customization. Q-Flash Plus, Smart Backup, and TPM module support add additional value and system protection.Whether building a high-end gaming rig or a powerful workstation, the GIGABYTE X870 GAMING WIFI6 DDR5 motherboard is an excellent choice. Enjoy unmatched speed, performance, and connectivity with this reliable and versatile ATX board—available now at the best price in BD.
Features
- Supports AMD Ryzen 9000, 8000 & 7000 Series processors with AM5 socket
- Equipped with latest AMD X870 chipset and DDR5 memory support up to 8000MHz
- Triple M.2 slots with Gen5/Gen4 SSD support and RAID 0/1/5/10 functionality
- Features USB4 Type-C ports and HDMI 2.1 for next-gen display output
- Integrated Realtek 2.5GbE LAN and Wi-Fi 6 with Bluetooth 5.3
- 1x PCIe 5.0 x16 and dual PCIe 3.0 slots for advanced GPU and expansion support
- 4 DIMM slots supporting up to 256GB DDR5 dual-channel memory
- Realtek HD Audio codec supporting 7.1 channel surround sound
- Multiple RGB and ARGB headers for customizable lighting setups
- Q-Flash Plus, TPM header, and GCC support for enhanced user control and security
