| Summary |
Specifications:
Basic Information
Supported CPU
support for AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
Chipset
AMD X570
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor

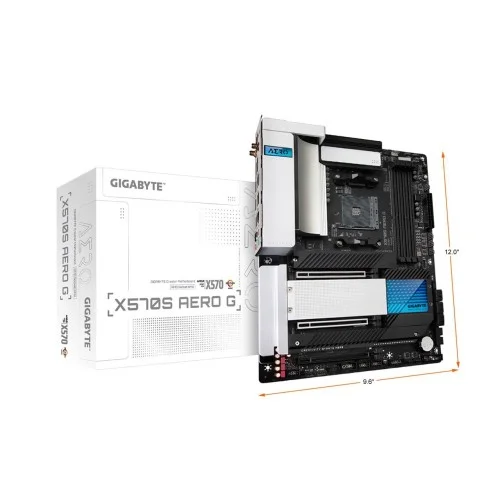

ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode
Ryzen 4000G/2000 Series Processors support PCIe 3.0 x16 mode
Ryzen 3000G/2000G Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x8 mode
Ryzen 4000G/2000 Series Processors support PCIe 3.0 x8 mode
Ryzen 3000G/2000 G-Series Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
M.2 Socket
4 x M.2 Socket 3 connectors
Memory
Type
DDR4, Dual channel memory architecture
Slots
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supported Memory
- AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors:
- Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
- AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors:
- Support for DDR4 2933/2667/2400/2133 MHz memory modules
- ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Extreme Memory Profile (XMP) memory modules
Maximum Memory
Maximum memory up to 128 GB
Graphics
Graphics
- 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
Max Shared Memory
Maximum shared memory of 16 GB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)
CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

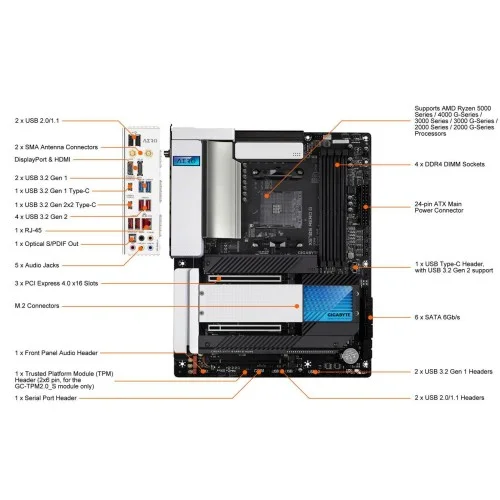

Internal I/O Ports
1 x 24-pin ATX main power connector
- 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
- CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
- front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Thunderbolt™ add-in card connector
- serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

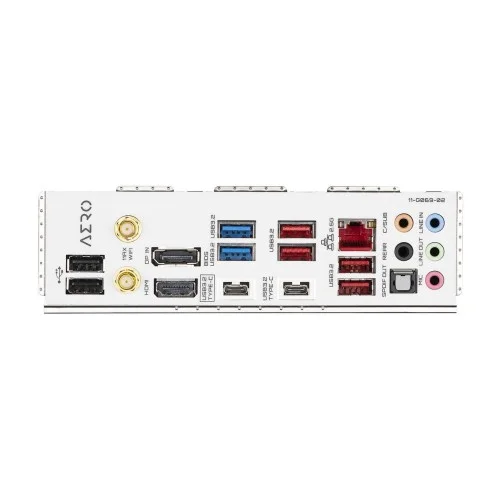

Back Panel Connectors
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) 1 x HDMI port
1 x DisplayPort In port
- USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty
03 years warranty

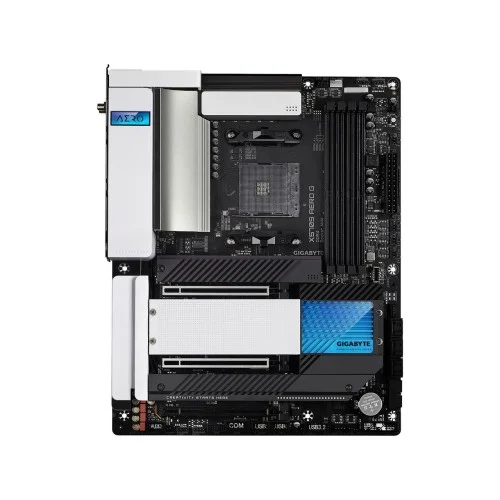

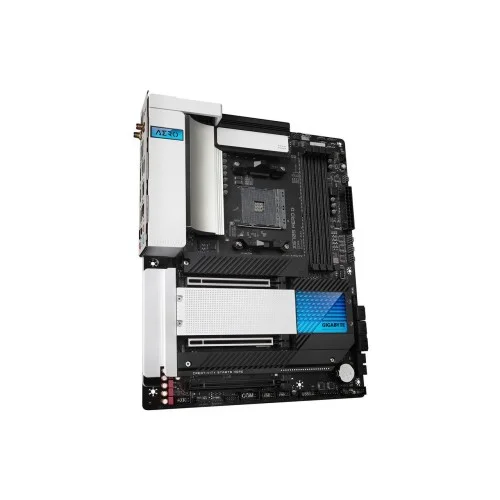

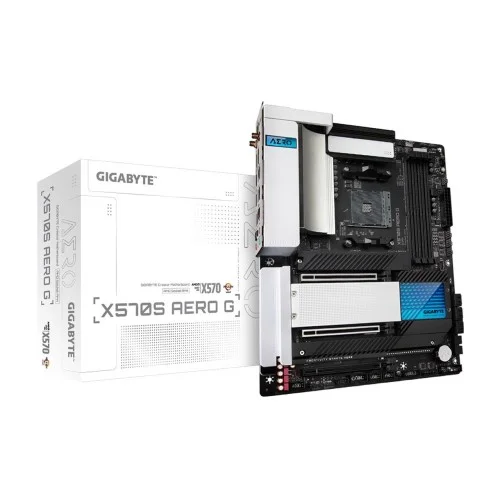

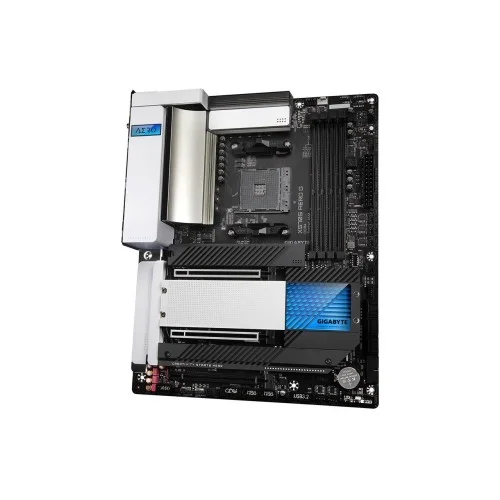

Gigabyte X570S AERO G AM4 AMD ATX Motherboard
The GIGABYTE X570S AERO G Motherboard falls under their Ultra Durable product stack as a performance-oriented motherboard marketed towards content creators.
Offering an extensive list of connectivity features with contemporary aesthetic appeal, this AMD Socket AM4 motherboard supports all AMD Ryzen 2000, 3000 and 5000 Series processors, including 2nd-generation or higher AMD G-Series processors.
Creativity Starts Here
The Gigabyte X570S AERO G is expertly engineered to unleash the full potential of AMD Zen 3 architecture Ryzen processors. Oriented for creative professionals, this ATX motherboard is also well equipped with expandable graphics, ultra-fast storage and impressive connectivity for creators to deal with heavy design workloads like 3D rendering and feature-length video production. Performance aside, the Gigabyte X570S AERO G also catches eyes, sporting classic black & silver color scheme that complements the clean-designed heatsinks.
Go Further Without More Cables
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
All at One Cable that Does It All.
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK not only eliminates cable clutter, but also offers the benefit of data, video, and power charging the same time. One USB Type-C cable connected, make your workspace neat and tidy.
Add Graphic Power to You
Ever wondered if you can have your discrete, high-end graphics card to power your pen display? Through the DisplayPort_In and VisionLINK connections, the performance of the discrete graphics card can be delivered to the pen display. Bring your creation into incredible realism and performance.
DisplayPort Alternate Mode with USB Power Delivery
Vision LINK provides the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and 60W Power Delivery design for device charging. It’s a perfectly tailored connectivity for creators and professional artists.
USB Power Delivery
With the design of USB Power Delivery(PD) Profile 4 and goes up to 20V and 3A (60W) specific. It is a specification for handling higher power and allows a range of devices to fast charge over a USB connection.
DisplayPort Alternate Mode
Alternate mode is the feature in USB Type-C allowing for standard USB Type-C connectors to carry both USB signal and non USB data like video signal.
Intel 2.5GbE Connectivity
The adoption of Intel 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required by large file transfers, video editing, and performance workloads.
Wi-Fi 6 — Ideal for All Your Online Activities
Onboard Wi-Fi 6 technology supports 802.11ax with Bluetooth module technology, enables gigabit wireless performance, fewer dropped connections, and reduced congestion in heavy bandwidth usage scenarios. Moreover, the antenna design provides better Wi-Fi signal strength compared to a traditional antenna.
SuperSpeed USB 20 Gbps
To feature the USB 3.2 Gen 2x2 connectivity design, which offers double performance than the current USB 3.2 Gen 2. It works with up to 20 Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. You can enjoy the ultimate connection flexibility to access and store massive amounts of data rapidly.
Multi-Card Support
Multi-graphics configurations offer better graphics performance for applications that demand the highest frame rates without compromising on resolution.
Full PCIe 4.0 Design
For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard supports a variety of PCIe 4.0* devices, including graphics card and M.2 SSD.
PCIe 4.0 M.2 Slot
Supports new PCIe 4.0 M.2 SSD
PCIe 4.0 Components
Next generation components ensure full compliance with PCIe 4.0
PCIe 4.0 Slots
Supports new PCIe 4.0 graphic card and accelerator card
PCIe Bandwidth
Up to 31.58 GB/s from new PCIe 4.0 x16 slot designs for the next generation add-on cards which need tremendous bandwidth, including the graphics card, deep learning accelerator card and the video capture card.
SSD Read Speed
Content creators’ workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.
Single 32 GB Support
A single memory slot of the X570 motherboard can support up to 32 GB. With populated 2 DIMMs per channel on GIGABYTE X570 motherboards, the maximum me
Gigabyte X570S AERO G FEATURES
Support AMD Ryzen™ 5000 series / Ryzen™ 5000 G series / Ryzen™ 4000 G series / Ryzen™ 3000 series / Ryzen™ 3000 G series / RYZEN 2000 series / Ryzen™ 2000 G series processors
Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
Go further without more cables by VisionLINK I/O design
High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal
Comprehensive connectivity by front and rear USB 3.2 Type-C® connectors
4 Ultra-Fast NVMe PCIe® x4 M.2 connectors with unique thermal guards
Effective cooling solution design for the better thermal dissipation
Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
Gigabyte X570S AERO G Motherboard Review
Back in the second quarter of this year, Gigabyte announced an update of the AMD X570 platform – the X570S. So today in our Gigabyte X570S AERO G motherboard review, we’re looking at the X570S AERO G motherboard.
What’s great about these is the updates made on the available I/O options while doing what their predecessors couldn’t. And that’s passively cooling the X570 chipset.
This motherboard is perfect for the Storm-trooper build enthusiasts. And if you’re one of them, you’ll likely fall in love with this creatively unique board. If you find this product interesting and want to know more about it, you’ve come to the right place.
.. |
Specification
Basic Information
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
GIGABYTE Z790 UD AX 13th & 12th Gen ATX Motherboard
The GIGABYTE Z790 UD AX ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+1 Phases Digital VRM Solution. The motherboard comes with 4x SMD DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. The motherboard is equipped with 3x PCIe 4.0 x4 M.2 Connectors. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. It has PCIe 5.0 x16 Slot with Quick Release & Screwless Design.
The GIGABYTE Z790 UD AX is equipped with 2.5GbE LAN & Wi-Fi 6E 802.11ax.2.5G LAN provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. The latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band enables gigabit wireless performance, provides smooth video streaming, a better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 UD AX ATX Motherboard comes with 3 years of warranty.
.. |
GIGABYTE Z790 EAGLE AX DDR5 ATX MotherboardGIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard, a high-performance motherboard that sets a new standard in gaming and productivity. Designed for gamers, enthusiasts, and professionals alike, this motherboard combines cutting-edge technology, robust construction, and a host of features to deliver an exceptional computing experience. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard is built to support the latest Intel 12th generation Alder Lake processors. With its LGA 1700 socket and support for DDR5 memory, this motherboard unleashes the full power of the latest CPUs, ensuring smooth and efficient performance for even the most demanding applications and games. Equipped with PCIe 5.0 slots, the Z790 EAGLE AX offers unparalleled expansion capabilities. Whether you're looking to install multiple graphics cards for immersive gaming experiences or add high-speed storage devices for lightning-fast data access, this motherboard provides the flexibility to meet your needs. With PCIe 5.0, you can take advantage of higher bandwidth and faster data transfer speeds, pushing the boundaries of your system's performance. The Z790 EAGLE AX also boasts an advanced cooling solution to keep your system running at optimal temperatures. With multiple fan headers, integrated heatsinks, and a robust power delivery system, this motherboard ensures efficient heat dissipation and stable performance even during intense gaming sessions or heavy workloads. Say goodbye to overheating and throttling, and hello to uninterrupted performance and reliability. In terms of connectivity, the Z790 EAGLE AX leaves no stone unturned. With a wide range of USB ports, including USB 3.2 Gen 2x2 and USB Type-C, Thunderbolt 4 support, and the latest Wi-Fi 6E technology, you can connect and transfer data at lightning-fast speeds. Whether you're gaming online, streaming content, or transferring large files, this motherboard provides a seamless and lag-free experience. The Z790 EAGLE AX also features RGB Fusion 2.0, GIGABYTE's advanced RGB lighting system. With customizable lighting effects and synchronization options, you can create a personalized and eye-catching lighting setup that matches your style and enhances the aesthetics of your build. Upgrade your gaming and productivity experience with the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard. With its powerful performance, extensive connectivity options, advanced cooling, and stunning RGB lighting, this motherboard is the perfect choice for those seeking a high-performance and visually striking system. Take your computing to new heights with the Z790 EAGLE AX and unleash the full potential of your hardware... |
Gigabyte B850M GAMING X WF6E MotherboardThe Gigabyte B850M GAMING X WF6E Motherboard is a powerhouse designed to deliver top-notch performance for gamers, creators, and PC enthusiasts. Built on the AMD B850 chipset, it supports AMD Ryzen™ 9000, 8000, and 7000 Series processors with an AMD Socket AM5, ensuring compatibility with the latest CPUs. Its micro-ATX form factor provides a compact yet robust foundation for your gaming rig or workstation. This motherboard supports cutting-edge DDR5 memory modules with overclocking capabilities of up to 8200 MT/s, ensuring lightning-fast performance. With 4 DIMM slots supporting up to 256GB of memory, it delivers exceptional multitasking and system responsiveness. Additionally, AMD EXPO™ and XMP support make memory overclocking seamless and efficient. For gamers and creators who demand immersive visuals, the motherboard comes equipped with integrated AMD Radeon™ Graphics. It features 1 HDMI 2.1 port supporting resolutions up to 4096x2160@60Hz and 2 DisplayPorts with resolutions up to 3840x2160@144Hz. Triple-display support makes it perfect for multitasking setups. Storage options are impressive, with dual M.2 PCIe 5.0/4.0 slots for high-speed SSDs and 4 SATA 6Gb/s ports for additional storage. Its Realtek® 2.5GbE LAN ensures ultra-fast and stable network connectivity, while the Realtek® Wi-Fi 6E and Bluetooth 5.3 support provide wireless flexibility. Audio enthusiasts will appreciate the Realtek® High Definition Audio codec, which supports up to 7.1 channels for crystal-clear sound. With ample USB ports, including USB Type-C® and USB 3.2 Gen 2, you'll enjoy versatile connectivity.Features of Gigabyte B850M GAMING X WF6E MotherboardDDR5 OC up to 8200MT/sAMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series ProcessorsDigital twin 10+2+2 phases VRM solutionDual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module SupportWIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installationEZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless DesignEZ-Latch Click : M.2 heatsinks with screwless designFriendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal GuardFast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antennaExtended Connectivity : HDMI, Displayport.. |
