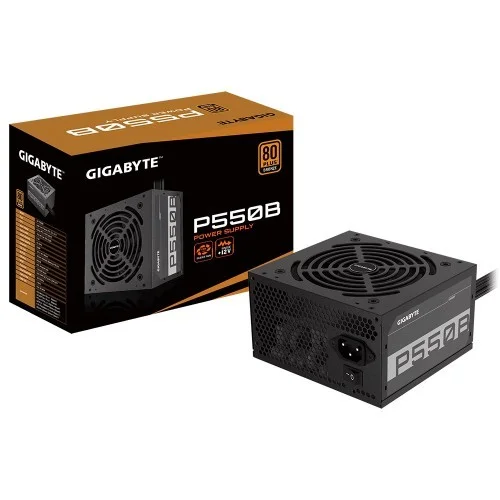

Gigabyte P550B 550W 80 Plus Bronze Certified Power Supply

Gigabyte P750GM 750Watt 80+ Gold Full Modular Power Supply

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money. The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time. Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Specification:

Key Features
Efficiency (Approx.)	8‎5% at typical load
Certification	80 PLUS Bronze
Fan Size	1‎20mm Hydraulic Bearing (HYB) Fan
Input
Voltage	1‎00-240 Vac (full range)
Frequency Range	6‎0-50 Hz
Current	8‎-4 A
Output
Modular Type	Non-Modular
Total Power	5‎50W
Connector
Main Power	ATX/MB 20+4 Pin x 1 : 550mm*1
CPU	CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-E	PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA	SATA x 6 : 500mm+120mm+120mm*2
Floppy	4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm + 120mm + 120mm + 120mm *1
Warranty Information
Manufacturing Warranty	2 Years
