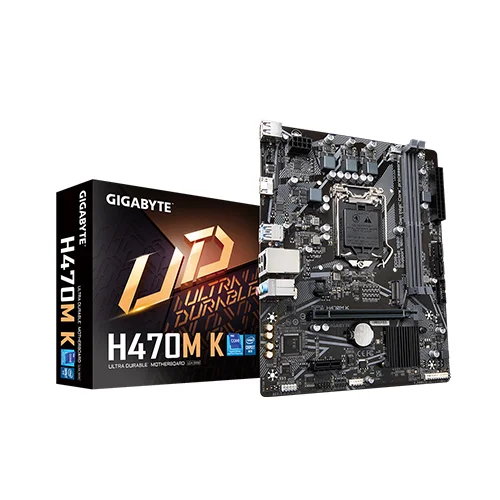

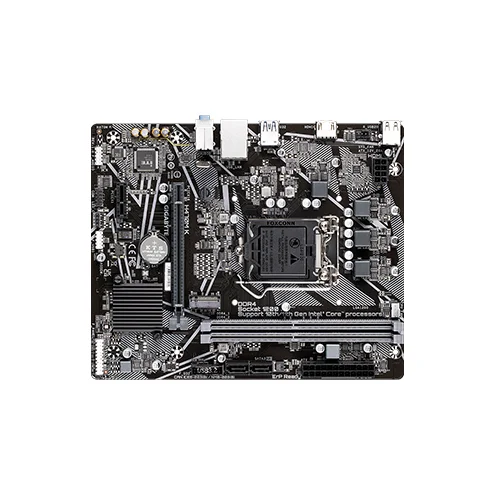

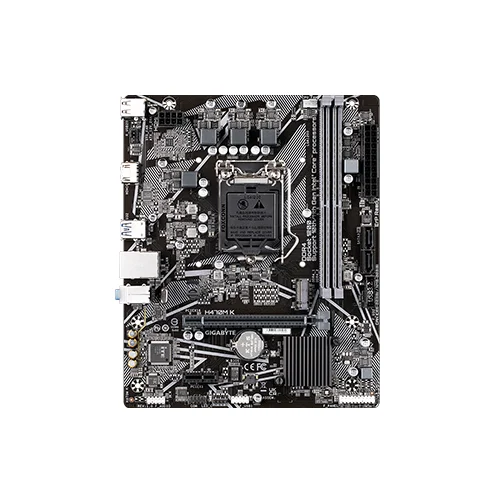

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard
Save: 1480৳ (15%)
Out Of Stock
GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard
- Stock: Out Of Stock
- Model: H470M K
- Product id: 24387
8,500৳
9,980৳
Ex Tax: 8,500৳
- Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
- Supported RAM: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1 x HDMI port, resolution of 4096x2160@30 Hz
- : GbE LAN with Bandwidth Management
Chat Through
Quick Compare
| Product Details | ||||
| Product | GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard | MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard | GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard | MSI PRO H410M-B 10th Gen Micro-ATX Motherboard |
| Image |  |  |  |  |
| Price | | | | |
| Model | H470M K | MSI H310M PRO-VDH Plus | GA-H81M-H | PRO H410M-B |
| Brand | GIGABYTE | MSI | GIGABYTE | MSI |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 1 reviews. | Based on 0 reviews. |
| Summary | SpecificationSupported CPU LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPUChipset Intel H470 Express ChipsetBIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor Micro ATX Form Factor; 22.6cm x 18.5cmAudio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channelPCI 1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1M.2 Socket 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSDType DDR4Slots 2 x DIMMSupported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 HzMaximum Memory 64GB (32 GB single DIMM capacity)Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 HzMax Shared Memory 512MBHDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 HzUSB (s) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)Supported Storage 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors Intel Optane Memory ReadyRAID Support for RAID 0, RAID 1, and RAID 5Audio 1 x front panel audio headerInternal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumperSpecial Features Support for APP Center @BIOS Ambient LED EasyTune ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress InstallManufacturing Warranty 03 YearsGIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard The GIGABYTE H470M K Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios... | MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard Cooling your PC is essential for reliable performance. We've included enough fan headers with full control to help you cool your system to the max. With support for the latest display connectors (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user. Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards. This motherboard is equipped with an HDMI port supporting the latest 4K Ultra-HD 4096×2160p resolution @ 24Hz to provide a breathtaking visual experience. Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium-quality audio components... | GIGABYTE GA-H81M-H 4th Gen Micro ATX MotherboardThe GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is a reliable and budget-friendly motherboard designed for Intel 4th generation processors, offering a range of features that cater to both casual and entry-level gamers and general users. This motherboard provides a solid foundation for building a cost-effective desktop PC. Powered by the Intel H81 Express Chipset, this micro ATX motherboard supports a wide range of Intel processors, including Core i7, Core i5, Core i3, Pentium, and Celeron CPUs in the LGA1150 package. The dual-channel DDR3 memory architecture supports memory modules with speeds of 1600/1333 MHz and even Extreme Memory Profile (XMP) modules for improved performance. With two 1.5V DIMM sockets, you can install a maximum of 16 GB of RAM, making it suitable for multitasking and running applications smoothly. For graphics, the motherboard boasts integrated Intel HD Graphics with a D-Sub port and an HDMI port supporting resolutions of up to 1920x1200 and 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, respectively. This means you can enjoy high-quality visuals without the need for a dedicated graphics card, although there is a PCI Express x16 slot available for adding one if desired. Connectivity options include a Realtek GbE LAN chip for reliable Ethernet networking, as well as USB 3.0 and USB 2.0 ports for fast data transfer. The motherboard features two SATA 6Gb/s connectors and two SATA 3Gb/s connectors for storage devices. The motherboard comes with a 3-year warranty, providing peace of mind and support for long-term usage. It's equipped with a user-friendly BIOS with AMI EFI technology and a range of helpful features like Q-Flash, Xpress Install, and an APP Center with various applications.GIGABYTE GA-H81M-H Motherboard FeaturesCPU Compatibility: This motherboard supports a variety of Intel processors, including Core i7, Core i5, Core i3, Pentium, and Celeron processors in the LGA1150 package.Chipset: It is powered by the Intel H81 Express Chipset, providing a stable and reliable platform for your system.BIOS: The motherboard features a 32 Mbit flash BIOS with licensed AMI EFI technology, ensuring a user-friendly and reliable interface. It supports various BIOS standards, including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.Audio: Equipped with a Realtek ALC887 codec, it offers High Definition Audio with support for 2/4/5.1/7.1-channel audio setups, delivering clear and immersive sound.Form Factor: This motherboard is designed in a Micro ATX form factor, measuring 22.6cm x 17cm. It's compact, making it compatible with a wide range of PC cases.Expansion Slots: It includes one PCI Express x16 slot running at x16 speed and two PCI Express x1 slots, allowing you to install additional expansion cards such as a dedicated graphics card, sound card, or networking card.Memory Support: The motherboard has two 1.5V DIMM sockets supporting a dual-channel memory architecture. It can accommodate DDR3 memory modules with speeds of 1600/1333 MHz and supports non-ECC memory modules and Extreme Memory Profile (XMP) memory modules. The maximum memory capacity is 16 GB.Graphics: It features an integrated Intel HD Graphics processor with support for a D-Sub port and an HDMI port, capable of delivering resolutions up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz (HDMI 1.4a version).Connectors and Ports: The motherboard provides various connectivity options, including an HDMI port, two DisplayPort connectors, USB ports (2 x USB 3.0/2.0 and 6 x USB 2.0/1.1), and a Realtek GbE LAN chip (10/100/1000 Mbit) for Ethernet connectivity. It also includes SATA connectors for storage devices.Special Features: It comes with a range of useful features, such as Q-Flash for BIOS updates, Xpress Install for easy software installation, and an APP Center with applications that may vary by motherboard model. Other features include @BIOS, EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, and Support for ON/OFF Charge.Warranty: The motherboard is backed by a 3-year warranty, offering peace of mind and support for long-term usage... | MSI PRO H410M-B 10th Gen Micro-ATX Motherboard The MSI PRO H410M-B Motherboard supports 10th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 2933(Max) MHz. This motherboard helps users work smarter by delivering an efficient and productive experience. It features tons of convenient and smart designs for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. It has a VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz. It also has an HDMI 1.4 port, supports a maximum resolution of 4K 30Hz.The MSI PRO H410M-B lets you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds. The most important thing about DIY is expandability. MSI PRO H410M-B features such as stable LAN, faster storage and USB transfer speed, and other expandable connectors are ready to enlarge your flexibility.The MSI PRO H410M-B comes with a 3-year warranty. SpecificationBasic InformationSupported CPU Supports 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200Chipset Intel H510 ChipsetForm Factor m-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)Audio Realtek ALC897/ ALC892 Codec 7.1-Channel High Definition AudioExpansion SlotsPCI 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)M.2 Socket 1x M.2 slot (Key M, from H510 chipset)MemoryType DDR4Slots 2x DDR4 memory slotsSupported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)Maximum Memory Up to 64GBGraphicsGraphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30HzConnector & PortsHDMI 1x HDMI 1.4 portVGA (s) 1x VGA portUSB (s) Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)LAN Port (s) 1x Realtek RTL8111 Gigabit LAN controllerSupported Storage 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesAudio 1x Front panel audio connectorInternal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumperTPM (Trusted Platform Module ) 1 x TPM module connectorWarranty InformationManufacturing Warranty 03 Years.. |
