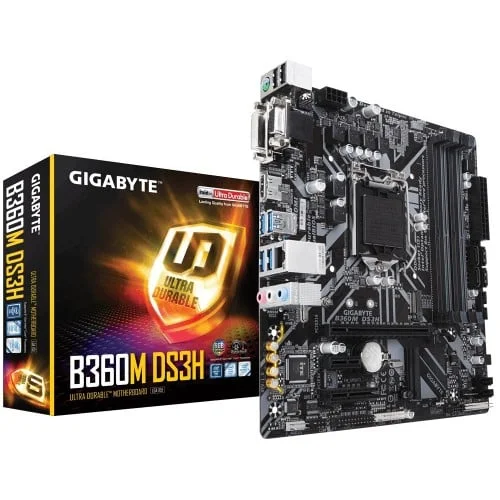

Gigabyte B360M-DS3H 9th and 8th Gen Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-4860
Product id: 17414

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 9th and 8th Gen Intel Core Processors • Dual Channel Non-ECC Unbuffered DDR4 • New Hybrid Digital PWM Design • RGB FUSION supports RGB LED strips in 7 colors

Gigabyte B360M-DS3H 8th Gen Motherboard

Supports 9th and 8th Gen Intel Core Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

RGB FUSION supports RGB LED strips in 7 colors

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra Durable™ 15KV Surge LAN Protection

Intel® Optane™ Memory Ready

GIGABYTE UEFI DualBIOS™

Specification:

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel B360 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 20.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x4 slot 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Intel® Optane™ Memory Ready
Memory
Type	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Slots	Dual channel memory architecture
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. (Please refer "Memory Support List" for more information.)
Maximum Mamory	64 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory	1GB
Connector & Ports
HDMI	1
USB (s)	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 years
