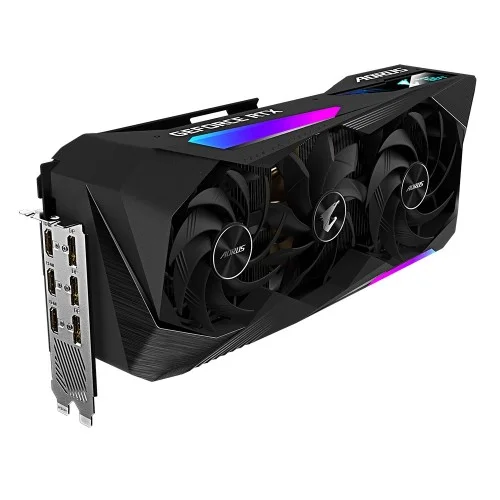

Gigabyte AORUS GeForce RTX 3070 Ti MASTER 8GB GDDR6X Graphics Card

Gigabyte AORUS GeForce RTX 3070 Ti MASTER 8GB GDDR6X Graphics Card

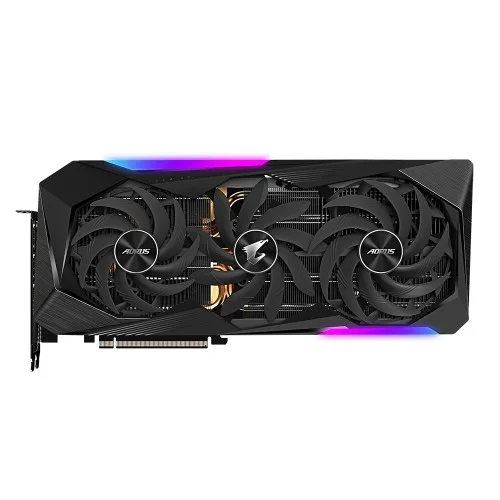

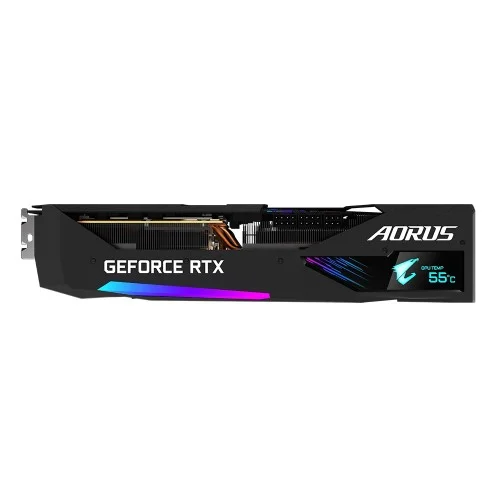

The Gigabyte AORUS GeForce RTX 3070 Ti MASTER features MAX-Covered cooling. The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink. The AORUS GeForce RTX 3070 Ti MASTER comes with NVIDIA Ampere Streaming Multiprocessors, 2nd Generation RT Cores, and 3rd Generation Tensor Cores. It is powered by GeForce RTX 3070 Ti and is integrated with an 8GB GDDR6X 256-bit memory interface. It features LCD Edge View. The LCD monitor not only displays graphics card information, but also various favorite texts, pictures, and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software. Various GPU and VRAM statuses such as temperature, clock, usage, and fan speed can be selected for real-time monitoring. You can also add customized texts and fonts, It supports jpg, bmp, and png file types too. GeForce RTX 3070 Ti GPU is equipped with 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. It comes with 8 GB memory and 608 GB/s memory bandwidth has 6144 CUDA® Cores, 2nd gen ray-tracing cores, and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology. It has a metal backplate that not only provides an aesthetical shape but also enhances the structure of the graphics card to provide complete protection. It supports Dual BIOS. The silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode. It supports 6 video outputs and a maximum of 4 displays are supported with this Graphics card. The Gigabyte AORUS GeForce RTX 3070 Ti MASTER comes with 2 years of warranty.

Gigabyte AORUS GeForce RTX 3070 Ti MASTER 8GB GDDR6X Review

s this the first time in recent memory where we cover a card that you can buy? And better yet, one that’s trending down in price? Nvidia’s hash rate limiter could be the reason that cards are making into the hands of gamers and not those of miners. Or is it that lower crypto prices mean that buying up container loads of GPUs is riskier than it was earlier in the year(opens in new tab)? Anyway, who cares! There’s a new card to review, and what a beauty it is. Say hello to the Gigabyte Aorus GeForce RTX 3070 Ti Master(opens in new tab). Just look at it, after 5 seconds are you left with any doubt that this isn’t your run of the mill GeForce RTX 3070 Ti(opens in new tab)? The GeForce RTX 3070 Ti Founders Edition didn’t wow us like some of the other RTX 30 series cards did. It feels more like an overclocked 3070 than something to close the wide gap between the standard GeForce RTX 3070(opens in new tab) and GeForce RTX 3080(opens in new tab). The Aorus Master, however, is built to extract everything it can from its version of the GA104 GPU. Like all RTX 3070 Ti cards, it makes use of the fully enabled chip, with the maximum 6,144 cores unlocked. This compares to the 5,888 of the RTX 3070 and 4,864 of the RTX 3070 Ti(opens in new tab). The bigger upgrade, though, is the switch to faster GDDR6X memory. This alone provides a bandwidth gain of over 30% over the RTX 3070 We’d like to have seen 16GB of the speedier video memory on board, but then that would make the RTX 3080 and more recent GeForce RTX 3080 Ti(opens in new tab) look under spec, not to mention adding even steeper power requirements on top of the base 290W TDP. For a full analysis of the hardware at its heart check our breakdown of the RTX 3070 Ti's specs(opens in new tab). This Aorus Master is Gigabyte’s flagship GeForce RTX 3070 Ti. It’s a huge card. And, as a four slot card, you can pretty much forget about using it in a SFF system. It comes with a 1,875MHz boost clock, a very nice 105MHz increase over the FE, and to deliver the necessary juice it sports one 6-pin and two 8-pin power connectors, dual BIOS and as you’d expect, lashings of RGB lighting. How about that LCD on the side? It can show real time GPU monitoring info or your choice of custom text and GIFs. Hiding it inside a case would be a travesty.

The Gigabyte AORUS GeForce RTX 3070 Ti MASTER 8GB GDDR6X Graphics Card 02 years warranty.

Video Memory Specifications
Type	GDDR6X
Size	8‎ GB
Resolution	7‎680 x 4320
Core Clock	1875 MHz (Reference Card: 1770 MHz)
Memory Clock	19000 MHz
BUS Type	256 bit
Memory Interface	PCI-E 4.0 x 16
Stream Processors	NVIDIA Ampere Streaming Multiprocessors
CUDA Cores	6144
Interface

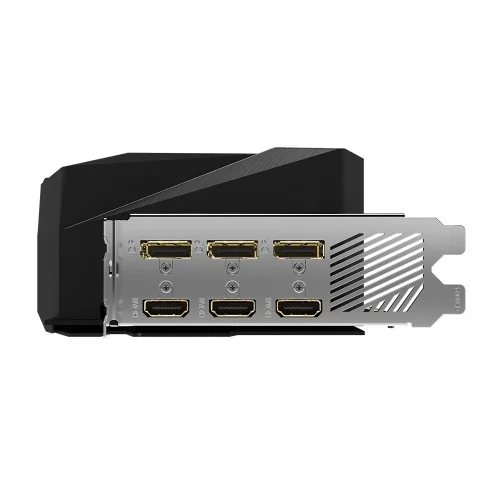

Display Port	DisplayPort 1.4a x 3
HDMI	HDMI 2.1 x2 HDMI 2.0 x1 (The middle HDMI output supports up to HDMI 2.0)
Power Specifications
Connectors	8 pin x2 + 6 pin x1
Recommended PSU	8‎50W
Display Option
Multi Display	4‎
Application Programming Interfaces
DirectX	1‎2 Ultimate
OpenGL	4‎.6
Physical Specifications
Dimensions	L=324 W=142 H=70 mm
Others	ATX
Warranty
Manufacturing Warranty	02 years warranty
