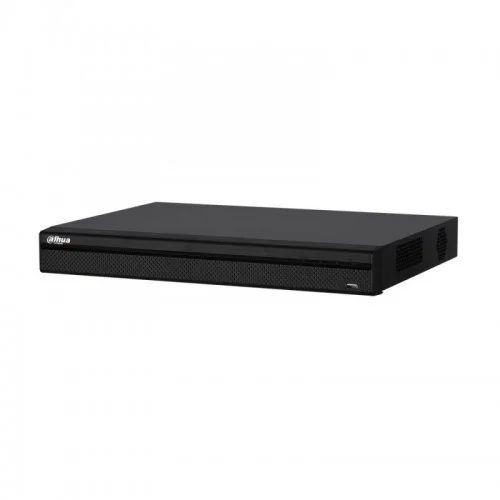

Dahua XVR4216AN 16 Channel Penta-brid XVR

Out Of Stock

Stock: Out Of Stock
Model: Dahua XVR4216AN
Product id: 19738

Based on 0 reviews. - Write a review

10,500৳

Ex Tax: 10,500৳

EMI starts at 3,682৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Easy setup, real plug and go • 1 HDD storage, up to 8TB • 4ch 1080P real-time decoding • Smart H.265+ Codec

Dahua XVR4216AN 16 Channel Penta-brid XVR

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO). The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. The XVR supports up to 6MP HD resolution (2880 x 1920) IPC input for recording, live viewing. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P. The smart fan can automatically turn on or turn off according to the CPU temperature. It is very useful when an emergency occurs. High performance chip provides perfect image quality with better color reproduction.

Specification

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Audio and Video
IP Camera Input	16 Channel, BNC
Two-Way Talk	Reuse audio in/out, RCA
Display
Interface	1 HDMI ,1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-Screen Display	16CH: 1/4/8/9/16/25
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.265/H.264
Resolution	1080N, 720P, 960H, D1, CIF
Record Rate	Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF (1~25/30fps) Sub steram:CIF(1~7fps)
Bit Rate	32Kbps ~ 4096Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Video Detection And Alarm
Trigger Event	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Playback And Backup
Sync Playback	16CH: 1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Third Party Support
Third Party Support	Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface	16CH:1 RJ-45 Port (100M)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Maximum User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Storage
Internal HDD	2 SATA Ports, up to 8TB capacity for each disk
eSATA	1 Port, for PTZ Control
Auxiliary Interface
USB	16CH: 2x USB 2.0
RS485	1 Port, for PTZ Control
Power
Power Supply	16CH: DC12V/4A
Power Consumption	16CH:<10W
Component Environment
Operational Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Net Weight	16CH: 1.6kg (3.6 lb)
Gross Weight	16CH: 3.0kg (6.6 lb)
