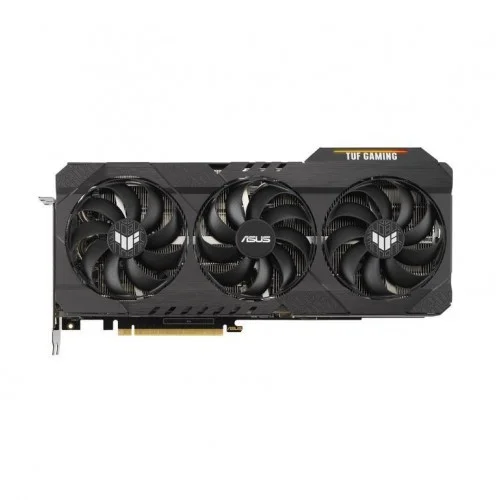

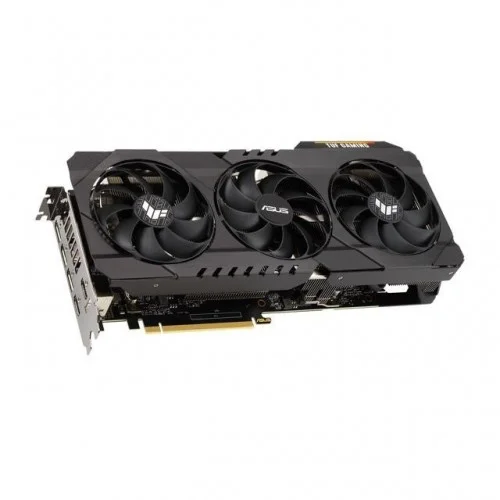

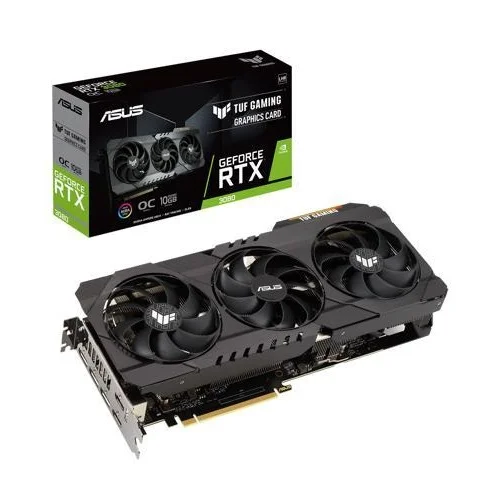

Asus Tuf Gaming Geforce RTX 3080 10GB Graphics Card

Asus Tuf Gaming Geforce RTX 3080 10GB Graphics Card

ASUS TUF Gaming GeForce RTX 3080 OC Graphics Card Is Based On The Ampere Architecture, Designed To Meet The Needs Of 4K Game Graphics And High Frame Rate, And Bring Real-Time Ray Tracing And AI Functions To Your Games. Asus Tuf  Rtx 3080 OC Graphics Card Compared With The Previous Generation Products Based On Turing, GDDR6X Video Memory And 320-Bit Memory Interface Provide Improved Performance And Energy Efficiency. Asus Tuf  Rtx 3080 OC Graphics Card There Are Multiple Outputs On The Front Of The Card, Such As DisplayPort 1.4 And HDMI2. HDMI2.1 Supports A Bandwidth Of Up To 48 Gbps, As Well As A Range Of Resolutions And Higher Frame Rates, Including 8K @ 60fps, 4K @ 120fps. Even Up To 10k RTX 3080 Is Not Only Involved In High-Definition Games. Asus Tuf  Rtx 3080 OC Graphics Card A Kernel That Uses CUDA And Other APIs To Accelerate Tasks. ASUS Uses A Three-Axis Fan Cooler For Cooling. Axial Technology Fans Use Sturdy Double Ball Bearings. The Two External Fans Rotate In The Same Direction, But The Central Fan Rotates In Opposite Directions To Reduce Turbulence. When The GPU Temperature Drops, There Is Also A Shutdown Mode. The Asus Tuf  Rtx 3080 OC Graphics Card Above The RGB Logo Can Be Customized Using Armory Crate And Synchronized With Other ASUS Components To Achieve Uniform Lighting. NVIDIA Ampere Architecture Asus Tuf  Rtx 3080 OC Graphics Card NVIDIA Ampere Is The Second-Generation RTX Architecture. It Has The Performance Of FP32, Twice The Performance Of The Second-Generation RT Core And The Third-Generation Tensor Core. It Also Has Samsung's Own 8N Process And Uses GDDR6X Video Memory. Asus Tuf  Rtx 3080 OC Graphics Card Real-Time Ray Tracing NVIDIA GeForce RTX Platform Enables Real-Time Ray Tracing Of Objects And Environments Through Physically Accurate Shadows, Reflections, Refractions, And Global Illumination. DLSS  NVIDIA DLSS (Deep Learning Super Sampling) Is An Artificial Intelligence Service That Provides The Best Image Quality While Increasing The Frame Rate Through A Dedicated AI Tensor Core On The GeForce RTX Platform. Asus Tuf  Rtx 3080 OC Graphics Card An Immersive Viewing Experience. HDMI  Asus Tuf  Rtx 3080 OC Graphics Card HDMI 2.1 Provides Higher Bandwidth, So 8K HDR TV Can Be Played Through A Single Cable For Ultra-High-Definition Games Built Tuf The Built-In TUF Game GeForce RTX 3080 In TUF Has Been Disassembled And Rebuilt To Provide More Reliable Power And Heat Dissipation. The New All-Metal Housing Can Accommodate Three Powerful Axial Fans With Sturdy Double Ball Bearings. Asus Tuf  Rtx 3080 OC  Fan Rotation Has Been Optimized To Reduce Turbulence. In Stop Mode, All Three Fans Are Stopped At Low Temperatures. Below This, Independent Heat Sinks For GPU And Memory Ensure Reliable Temperature Control. TUF Components, Auto-Extreme Technology, New GPU Brackets, And Other Asus Tuf  Rtx 3080 OC Features Such As Rear Vents Make TUF A Good Power Supply. For Builders Looking For A New “Old Faithful”, This Card Has Your Back.

Asus Tuf Gaming Geforce RTX 3080 10GB Review

Our first RTX 3080 AIB card comes from Asus, with a large 2.7-slot cooler and performance that inches past the 3080 Founders Edition, with lower temperatures and noise. The Asus GeForce RTX 3080 TUF Gaming OC(opens in new tab) is our first third-party AIB (add-in board) for the new GeForce RTX 3080, which now ranks as the best graphics card for gaming and sits atop the GPU benchmarks hierarchy. We have a few other 3080 AIB card reviews coming soon, but the Asus arrived first and thus gets our attention first. We've already covered the Ampere architecture in detail, so we're not rehashing that here. We're also not going to spend time running all the extra benchmarks we used in our RTX 3080 FE review. The Asus performance is so close that we'd just end up with a bunch of ties, and our core gaming benchmark suite is sufficient to tell us that. Here, the focus is on how the Asus card differs from the Founders Edition, which means the design, aesthetics, and cooling are the top considerations — and price. Still, again, it might be weeks or even months before the official pricing has any real meaning. The 1785MHz boost clock represents a 4.4% increase over the Founders Edition. That means slightly higher theoretical GFLOPS and TFLOPS, which you can see in the above table. Here's the thing: Both cards routinely exceed their boost clocks and land at similar speeds. In slightly less demanding games, we saw boost clocks of around 1920-1950 MHz. In Metro Exodus, which tends to be one of the most demanding games in our test suite, the Asus TUF Gaming OC averaged 1892 MHz over the five loops of the benchmark (compared to 1876 MHz for the Founders Edition). Now we're talking about a mere 0.85% difference in clock speed. Needless to say, the typical margin of error for gaming benchmarks is 1-2%, which is why in our benchmarks, the two cards are effectively tied. Advertisement If you want an alternative to the Founders Edition, the Asus is a great card. The Founders Edition is also a great card, but with a very different design. We'll cover that in more detail below, but you can safely buy either card and end up with an awesome gaming experience. Or at least, hopefully, supply will begin to catch up to demand some time in the next month or two, and you'll be able to find the 3080 cards in stock.

Video Memory Specifications
Type	GDDR6X
Size	10GB
Resolution	7680 x 4320
Core Clock	1440 MHz OC Mode: 1815 MHz Gaming Mode (Default): 1785 MHz
Memory Clock	19 Gbps
BUS Type	PCI Express 4.0 x16
Memory Interface	320-bit
Stream Processors	NVIDIA Ampere Streaming Multiprocessors
CUDA Cores	8704
Interface
Display Port	3 x Native DisplayPort 1.4a
HDMI	2 x Native HDMI 2.1
HDCP	HDCP 2.3
Power Specifications
Connectors	2 x 8-pin
Recommended PSU	850W
Display Option
Multi Display	4
Application Programming Interfaces
DirectX	DirectX 12 Ultimate
OpenGL	OpenGL 4.6
Physical Specifications
Dimensions	11.81" x 5.00"
Others	2.7-slot
Warranty
Manufacturing Warranty	2 Years
