ASRock B850M Pro RS WiFi AMD Socket AM5 Motherboard

Name: ASRock B850M Pro RS WiFi AMD Socket AM5 Motherboard
Brand: ASROCK
Availability: OutOfStock

Up Coming

ASRock B850M Pro RS WiFi AMD Socket AM5 Motherboard

Stock: Up Coming
Model: B850M Pro RS WiFi
Product id: 27946

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports AMD Ryzen 9000/8000/7000 CPUs
Dual-channel DDR5 up to 8000+ MHz (OC)
PCIe Gen5 M.2 & 2.5G LAN for high-speed performance
Built-in WiFi 6E & HDMI 2.1 for seamless connectivity

Basic Information
Supported CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset	- AMD B850
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Memory
Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Supported Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
USB (s)	CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
Wireless Communication module	- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio

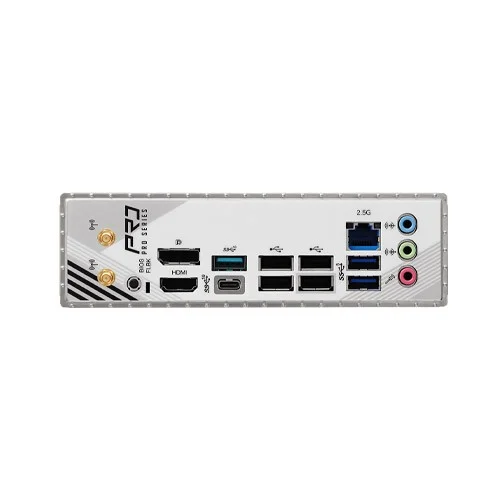

Internal I/O Ports	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Warranty	3 Years

ASRock B850M Pro RS WiFi AMD Socket AM5 Motherboard

The ASRock B850M Pro RS WiFi AMD Socket AM5 Motherboard is designed to deliver top-tier performance and features, making it an excellent choice for users seeking robust productivity and ultra-fast connectivity in their builds. Supporting AMD Ryzen™ 9000, 8000, and 7000 Series processors via the AM5 socket, this motherboard offers superior power and memory options to support high-end computing tasks. Equipped with PCIe Gen5 for high-speed graphics and M.2 storage, and Dual Channel DDR5 memory support, it ensures that users can experience seamless multitasking and gaming performance. The motherboard is built to last with 8+2+1 Power Phases and Dr.MOS technology for enhanced power delivery and thermal stability. It also comes with a pre-installed I/O shield for easier installation. Connectivity is a key strength, featuring 2.5G LAN for high-speed wired internet and 802.11axe Wi-Fi 6E for wireless connections, ensuring smooth online experiences even during bandwidth-heavy tasks. Additionally, the USB 3.2 Gen2 Type-C and USB 3.2 Gen2 Type-A ports provide ultra-fast data transfer speeds. For those looking to maximize storage, the ASRock B850M Pro RS supports multiple M.2 slots, including PCIe Gen5x4 and PCIe Gen4x4 modes, offering up to 256GB of DDR5 memory support, perfect for heavy workloads and gaming setups. The RAID support for both SATA and NVMe devices ensures reliable, high-performance storage configurations. Whether you're building a high-performance workstation or a powerful gaming rig, the ASRock B850M Pro RS WiFi delivers the speed, stability, and future-proof features you need to stay ahead of the curve.

Features

PCIe Gen5 & Gen4 Support: Offers blazing-fast speeds for graphics cards and storage devices with PCIe Gen5 and Gen4 compatibility.
Dual-Channel DDR5 Support: Supports up to 8000MHz (OC) DDR5 memory for exceptional multitasking and performance.
Ultra-Fast Connectivity: Features 2.5G LAN and Wi-Fi 6E for fast and stable internet connections.
Enhanced Power Delivery: 8+2+1 Power Phases and Dr.MOS technology for stable and efficient power distribution.
Multiple Storage Options: Equipped with M.2 PCIe Gen5 and Gen4 slots, supporting high-speed NVMe SSDs.
Pre-Installed I/O Shield: Simplifies the installation process, reducing setup time.
