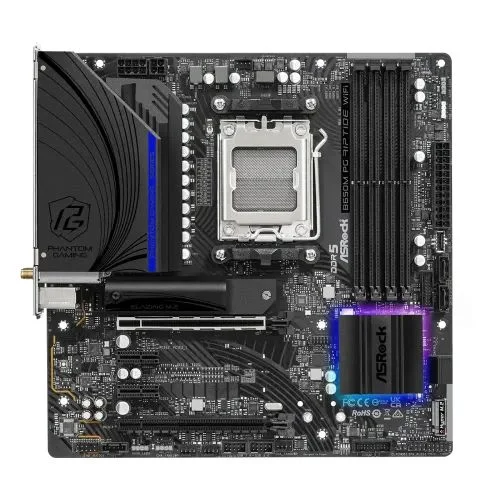

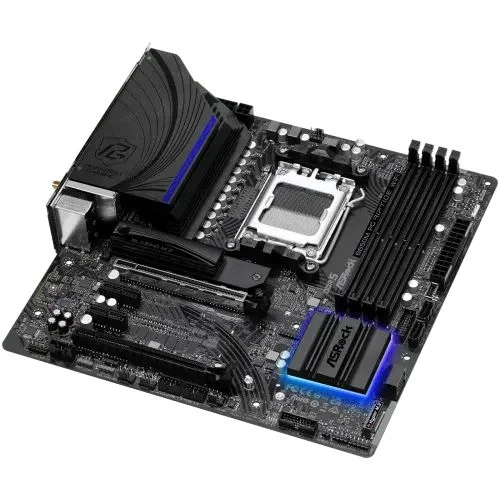

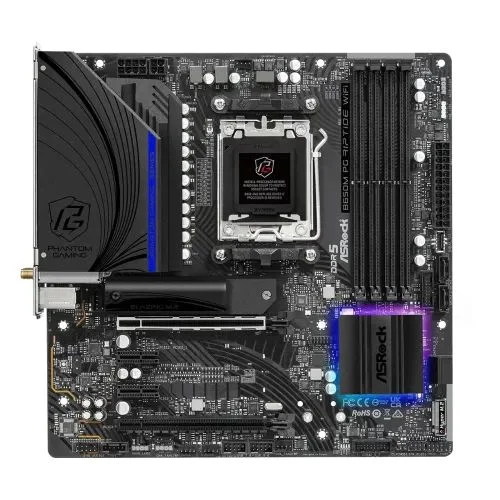

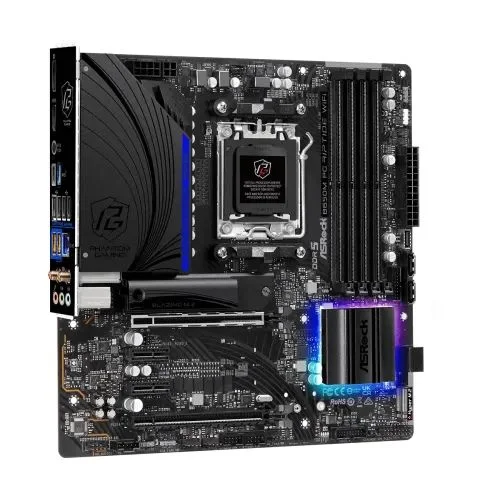

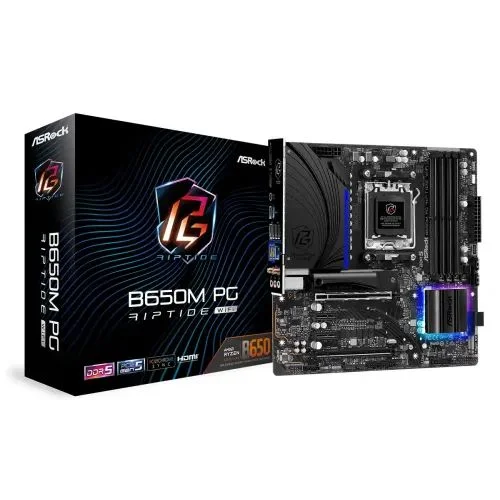

ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard

ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
2-3 Days
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard
  • Stock: 2-3 Days
  • Model: B650M PG Riptide WiFi
0৳
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
    • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, 6200MHz (OC), Max 128GB
    • Graphics Output: HDMI, DisplayPort
    • : Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth
Key Features
Form FactormATX
Basic Information
Supported CPURyzen 7000, Ryzen 7000 G
ChipsetAMD B650
Memory
Ram TypeDDR5
General information
Special FeaturesRGB, 2.5GHz LAN, USB 3.2, Dual Channel DDR5, Wi-Fi 6E

Specification

Basic Information
Supported CPUSupports AMD Socket AM5 Ryzen 7000 Series Processors
ChipsetAMD B650
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form Factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots
PCICPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
TypeDDR5
Slots4 DIMMs
Supported Memory- Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory128GB
Graphics
GraphicsIntegrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI1 x HDMI Port
Display Port (s)1 x DisplayPort 1.4

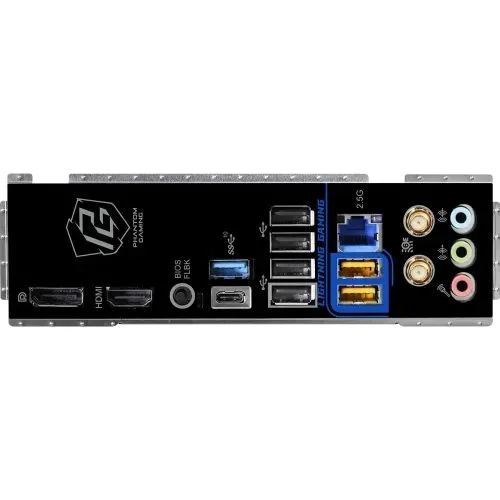

USB (s)- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication module- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO
Supported StorageCPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
AudioHD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports- 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )1 x SPI TPM Header
Others
Special FeaturesSuperb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN, 802.11ax Wi-Fi 6E Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled SoftwareSoftware - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty3 Years

ASRock B650M PG Riptide WiFi AMD AM5 Micro ATX Motherboard

The AMD Ryzen 7000-series CPUs with up to 16 Zen 4 cores and dual-channel DDR5 RAM with a maximum memory capacity of 128GB are supported by the ASRock B650M PG Riptide WiFi Motherboard. It has a Dr.MOS architecture with a 12+2+1 Power Phase and the most recent SPS (Smart Power Stage) technology. The Nahimic Audio is a feature of the ASRock B650M PG Riptide WiFi. No matter how you choose to listen—headphones, a headset, internal or external speakers, USB, Wi-Fi, analog output, or even HDMI—Namimic Audio gives you the most dynamic, detailed listening experience possible. Strong algorithms ensure the best noise-free conversation and maintain a constant vocal level regardless of your distance from the microphone. The Nahimic audio engine reduces speech variance, eliminates interference noise, and dynamically clears the sound. Better comprehension and less exhaustion are the results. A perfect gaming experience is provided by the ASRock B650M PG Riptide WiFi. The Sound Tracker is a graphic tool that indicates the general direction of the loudest noises. To ensure complete immersion throughout the game, each sound is placed precisely at 360° on the radar. Internet traffic is now even better and faster thanks to the expansion of WiFi 6E technology to the brand-new 6GHz frequency band. The WiFi 6E improves lower latency in addition to supporting service levels that are comparable to 5G networks and delivering faster speeds. Dedicated gamers and enthusiasts are the target audience for The Lightning Gaming Ports! Two distinct controller interfaces provide Lightning Gaming Ports, which help players connect high-speed mouse and keyboards with minimal jitter and latency. The motherboard of the ASRock B650M PG Riptide WiFi contains integrated RGB lighting, as well as onboard RGB headers and an addressable RGB header that enable the motherboard to be connected to compatible LED devices such strips, CPU fans, coolers, chassis, and more. With a spectacular 128GB/s transfer speed and support for the most recent PCI Express 5.0 standard, the Blazing M.2 is prepared to fully realize the potential of upcoming ultrafast SSDs. This means it can perform twice as much bandwidth as the previous generation. The extra large M.2 heatsink made of aluminum alloy increases heat dissipation to keep those fast M.2 SSDs as cool as possible, improving stability without sacrificing performance. The improved M.2 heatsink features an anti-drop screw design to provide easier installation. Two Type-A and Type-C USB 3.2 Gen2 ports are incorporated into this motherboard's back i/o to enable next-generation USB 3.2 Gen2 devices and provide up to 10 Gbps data transfer rates. Three years of warranty are included with the ASRock B650M PG Riptide WiFi.
