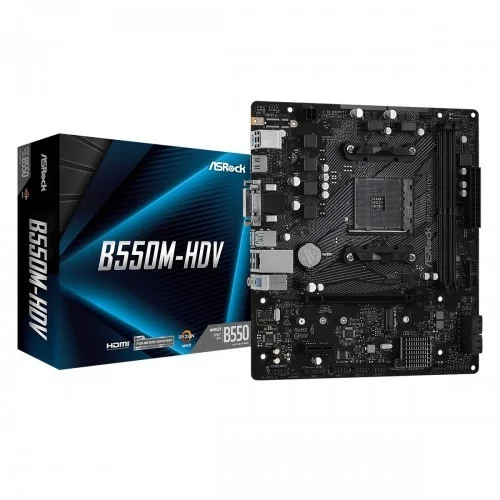

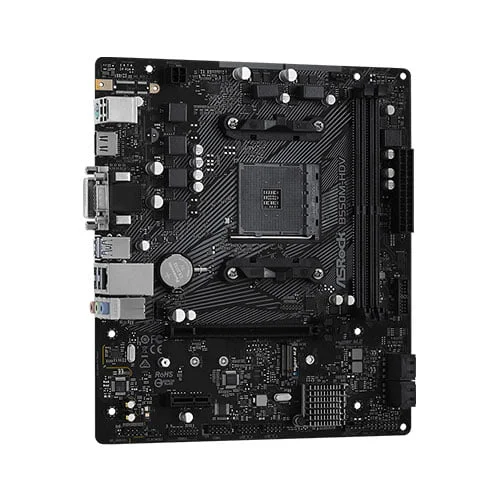

ASRock B550M-HDV DDR4 AMD Motherboard

ASRock B550M-HDV DDR4 AMD Motherboard

ASRock B550M-HDV DDR4 AMD Motherboard The NowFeatures sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock B550M-HDV Motherboard supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. It also offersthe most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. In comparison to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause the system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for user's convenience. Provides various apps and support software for users to download.

ASRock B550M-HDV Review

Our first look at AMD’s second-tier member of its new 500 Series of chipsets, the B550, involved some fairly premium priced boards. Then came the Asrock B550 Taichi, a beast of a B550 motherboard. Arguably, it was all getting a bit silly. Now Asrock is back but this time with B550 option that’s much more what we were initially expecting. Will it make it into our best B550 motherboard guide? Let's find out. Give it up, therefore, for the ASRock B550M-HDV Motherboard. Clocking in around $80, it sits rather more comfortably with the value-orientated B550's market positioning. Not that the B550 is a bum chipset. In fact, it isn’t miles away from its bigger X570 brother by most metrics. The key differentiator between the two involves the link between the CPU and PCH chip, the latter essentially being the motherboard chipset thanks to much of what used to be chipset functionality now residing on the CPU package. For the B550, that link is composed of a quartet of Gen 3 PCI Express lanes. The X570? It’s also quad-lane, but Gen 4 spec and so double the bandwidth.The most immediate and obvious consequence involves storage. You still get Gen 4 links directly into the CPU with the B550 chipset. There are 16 lanes available for graphics and another four for storage, enabling support for a quad-lane PCIe Gen 4 M.2 SSD. But, where the X570 adds support for a second Gen 4 M.2 drive attached to the PCH chip, the B550’s secondary M.2 socket is capped at PCIe Gen 3 speeds.The slower PCH link has implications for other bandwidth-sensitive features, including USB connectivity. But the impact isn’t all that onerous. It still supports up to two USB 3.1 Gen 2 ports, something that eluded the B450. The B550 is a new platform, of course, so includes support for both AMD’s latest Ryzen 3000 CPUs and upcoming processors based on the Zen 3 architecture, which should appear later this year under the Ryzen 4000 brand. There’s decent future proofing, then.
