| Summary |

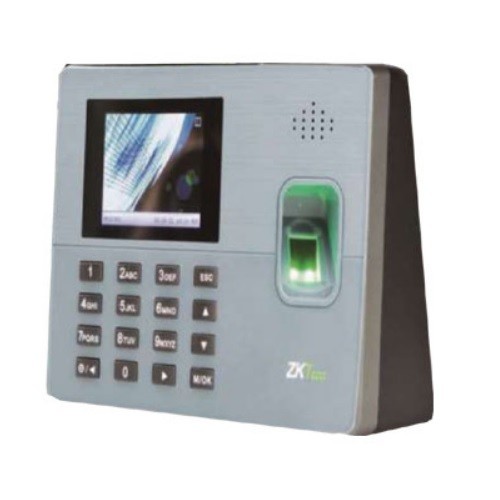

ZKTeco K60 Fingerprint Time & Attendance And Access Control Terminal
K60 is a fingerprint time & attendance and access control terminal,which can connect with third electric lock, exit button,The 2.8inch TFT screen can display more information vividly,including fingerprint image and verification result etc. TCP/IP communication is a standard function which makes sure the data transmission between terminal and PC can be easily done within several seconds. Internal backup battery insures the device working normally when the power cut off suddenly.It’s an ideal product for SMB market.
Specifications:
1. TCP/IP communication for various networking environment
2. Standard access control features
3. USB use for data transmission
4. Build in battery
Parameter
Fingerprint Capacity : 3000
User / ID Card Capacity : 3000 (1000 with SSR)
Record Capacity : 100,000
Display : 2.8-inch TFT Screen
Communication : TCP/IP, USB-Host
Standard Functions : ID card, Work Code, Short Message, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, Backup Battery, T9 Input, 9 digit user ID
Optional Functions : External bell, SSR
Power Supply : DC 5V 800mA
Operating Temperature : 0 °C - 45 °C
Operating Humidity : 20%-80%
.. |
ZKTeco FR1300 Fingerprint Access Control
The ZKTeco FR1300 Fingerprint Access Control is a formidable access control system. The ZKTeco FR1300 Access Control is a very advanced and well secured system for any purpose. The FR1300 features the latest design, having P65 certified for outdoor working environment, and works with inBIO series control panel or standalone device by RS485. The ZKTeco FR1300 Access Control is also packed with doorbell function so that non-users can use the doorbell function to let people know of their presence.This controller supports standard functions like ID Card Module. The FR1300 Access Control uses Optional IC card reader with combination of IC Card Module for reading the cards. The ZKTeco controller is able to outdoors as well.
Specifications
Main Features
Others
Sensor: ZKTeco Infrared Optical Sensor
Communication: RS485
Built-in Card Reader: 125 kHz EM card reader, Optional IC card reader
Optional Function: IC Card Module
Power Supply: DC 12V
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 20% ~ 80%
Physical Specifications
Dimension(LxWxH)
88mm×88mm×33.6mm
Warranty Information
Warranty
1 Years
.. |
ZKTeco FR1200 Fingerprint Reader
FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
Specifications:
Model
FR1200
CPU
324 MHz
Fingerprint Sensor
ZK Small Size Sensor
Algorithm Version
ZKFinger VX10.0
Communication
RS485
Standard Function
ID Card Module
Optional Function
IC Card Module
Voice Prompt
Buzzer
Power Supply
DC 12V
Operating Temperature
0 ~ 45°C (32°~113°F)
Protection Grade
IP65
Dimension(L x W x H)
102 x 50 x 37mm
.. |
ZKTeco FR1500 Fingerprint Scanner
Flush-Mounted
RS-485 Fingerprint Reader
Specifications:
Working Temperature
-10 °C ~ 45 °C
Working Humidity
20 ~ 95%
Dimensions(LxWxH)
121.3 × 77.3 × 38 mm
Algorithm
ZKFinger v10.0
Power Supply
Operating Voltage
12V DC
Stand-by Mode Power Consumption
12V*60mA=0.72W
Peak Current of Fingerprint scanning
140mA
Hardware
1.0 GHz CPU, ZKSilkID Sensor, Buzzer Prompt,Three-color Indicator Light
Compatibility
inBio/inBioPro Controllers, Standalone Fingerprint Devices
Standard Features
125KHz RFID Card
Optional Features
125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70), 13.56MHz HID Iclass Card
Communication
RS485
.. |
