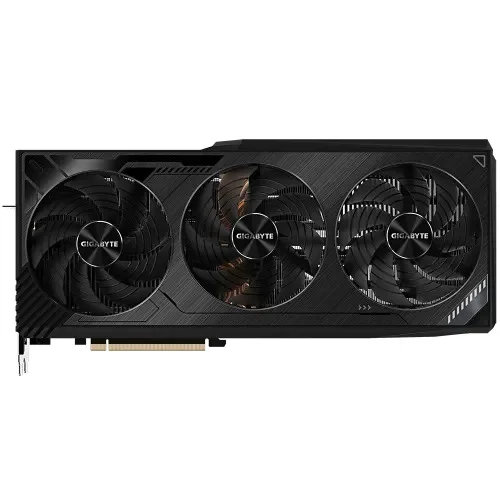

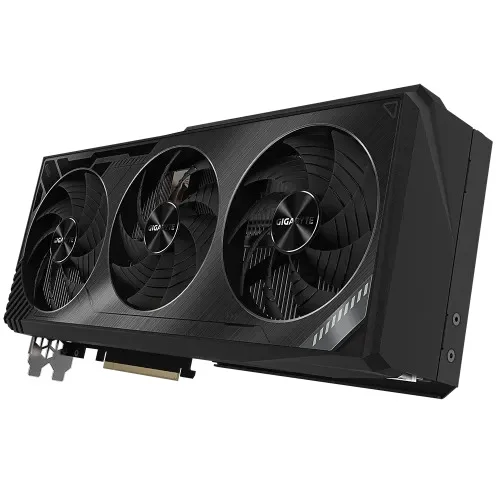

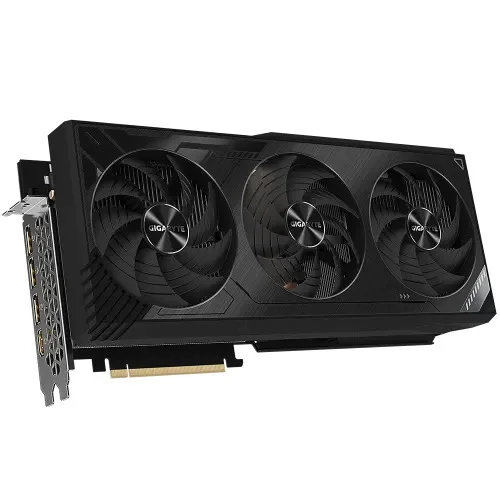

Gigabyte GeForce RTX 4090 WINDFORCE 24GB GDDR6X Graphics Card

SPECIFICATIONS

Video Memory Specifications
Type	GDDR6X
Size	24 GB
Resolution	7680x4320
Core Clock	2520 MHz
Memory Clock	21 Gbps
BUS Type	384 bit
Memory Interface	PCI-E 4.0
Stream Processors	NVIDIA Ada Lovelace Streaming Multiprocessors
CUDA Cores	16384
Interface

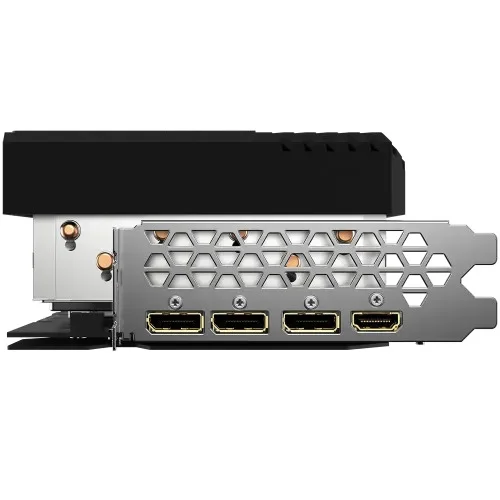

Display Port	DisplayPort 1.4 x3
HDMI	HDMI 2.1 x1
Power Specifications
Connectors	16 pin x1
Recommended PSU	850W
Display Option
Multi Display	4
Application Programming Interfaces
DirectX	1‎2 Ultimate
OpenGL	4‎.6
Physical Specifications
Dimensions	L=331 W=150 H=70 mm
Others	PCB Form: ATX
Warranty
Manufacturing Warranty	3 Years

GIGABYTE GEFORCE RTX 4090 WINDFORCE 24GB GDDR6X GRAPHICS CARD

The Gigabyte GeForce RTX 4090 WINDFORCE 24G Graphics Card is integrated with a 24GB GDDR6X 384-bit memory interface and it features NVIDIA Ada Lovelace Streaming Multiprocessors. It is equipped with advanced 4th Generation Tensor Cores for up to 2X AI performance and 3rd Generation RT Cores for up to 2X ray tracing performance. Gigabyte GeForce RTX 4090 WINDFORCE 24G is equipped with some special features such as a WINDFORCE cooling system, Dual Bios, and a Protection metal backplate. The WINDFORCE cooling system features three 110mm newly designed bionic shark fans, alternate spinning, 13 composite copper heat pipes, a large vapor chamber directly touching the GPU, 3D active fans, and Screen cooling, which together provide high-efficiency heat dissipation. The adjacent fans are in the opposite direction, so the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The double ball bearing structure has better heat endurance and efficiency than the sleeve structure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is spilled by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface. The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize it with other devices in the GIGABYTE CONTROL CENTER. The Gigabyte GeForce RTX 4090 WINDFORCE 24GB Graphics Card features Dual Bios. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. The metal back plate not only provides an aesthetical shape but also enhances the structure of the graphics card to provide complete protection. The Gigabyte GeForce RTX 4090 WINDFORCE 24G comes with 3 years of warranty. AHEAD OF ITS TIME, AHEAD OF THE GAME.

• New Streaming Multiprocessors: Up to 2x performance and power efficiency
• Fourth-Gen Tensor Cores: Up to 2x AI performance
• Third-Gen RT Cores: Up to 2x ray tracing performance

WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. SMOOTH AIRFLOW GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. DOUBLE BALL BEARING The double ball bearing structure has better heat endurance and efficiency than sleeve structure. SCREEN COOLING Extended heatsink design allows air flow to pass through, providing better heat dissipation. LARGE VAPOR CHAMBER & HEAT-PIPE The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. DUAL BIOS The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. POWER INDICATORS When experiencing any power supply abnormality, the indicator will alert gamers by flashing light. ULTRA DURABLE Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. GIGABYTE CONTROL CENTER GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

KEY FEATURE

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2X AI performance
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4090
• Integrated with 24GB GDDR6X 384-bit memory interface
• WINDFORCE cooling system
• Dual BIOS

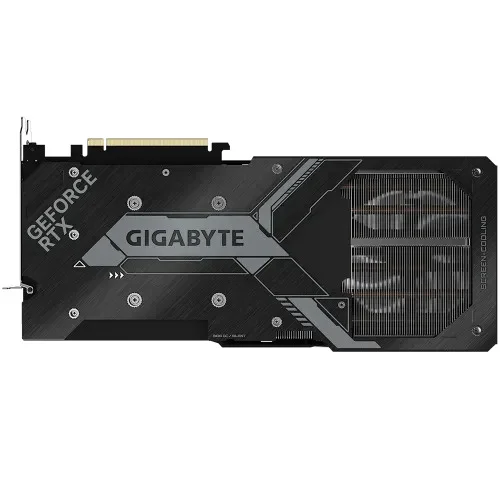

• Protection metal back plate
