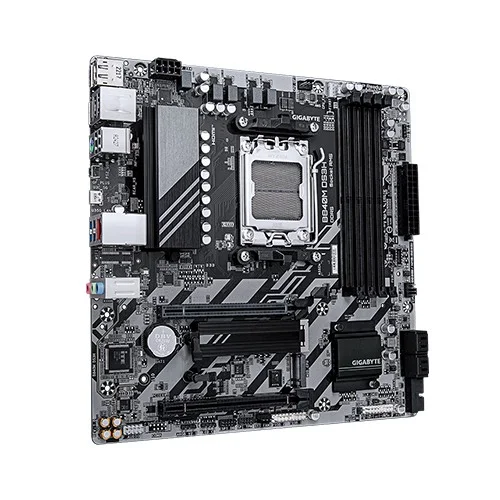

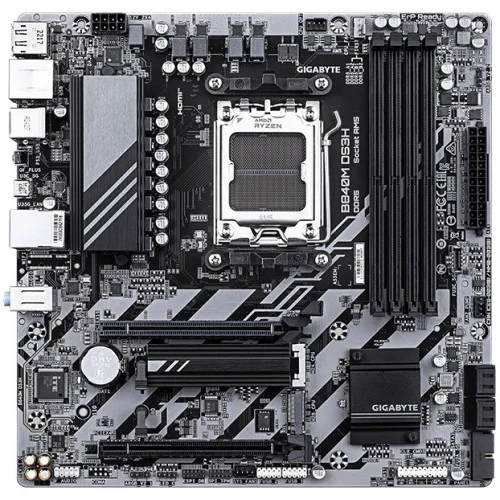

Gigabyte B840M DS3H Motherboard

Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
Gigabyte B840M DS3H Motherboard
  • Stock: In Stock
  • Model: B840M DS3H
  • Product id:  28925
18,500৳
Ex Tax: 18,500৳
EMI starts at 6,487৳/month. View all 25 banks EMI plans >
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
  • Supported CPU: Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron Processors (LGA1700)
  • Supported RAM: 4× DDR4 DIMM, Max 128GB, up to 5333(OC)
  • Graphics Output: 1× HDMI, 1× DisplayPort, 1× D-Sub
  • Features: PCIe 4.0 x16 slot, Realtek GbE LAN, Smart Fan 6, Q-Flash Plus
Basic Information
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
CPU AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset AMD B840
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Connector & Ports
USB (s) CPU:
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Internal I/O Ports 4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

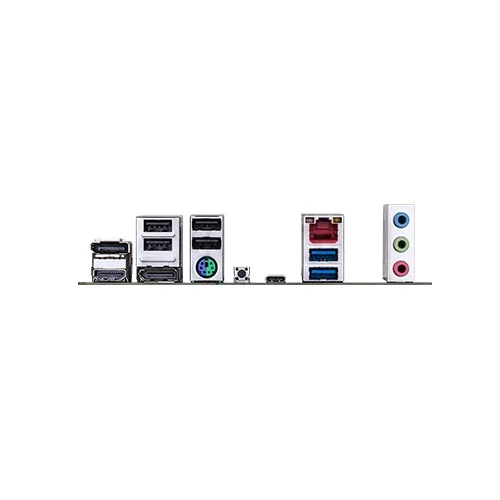

-- Back Panel Connectors:
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
External Features
Storage Interface 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting
Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
I/O Port iTE® I/O Controller Chip
Warranty Information
Warranty 3 years

Gigabyte B840M DS3H Motherboard

Gigabyte B840M DS3H Motherboard Price in bd offers an excellent balance of performance, compatibility, and durability, making it one of the best choices for modern gaming and productivity PCs. Designed with the latest AMD B840 chipset, this motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors with AM5 socket, ensuring future-ready performance for both gamers and professionals. For memory, the Gigabyte B840M DS3H provides 4x DDR5 DIMM slots with a massive capacity of up to 256GB, supporting speeds up to DDR5 8200(O.C). This ensures lightning-fast multitasking, smooth application performance, and optimized overclocking potential with AMD EXPO™ and XMP profiles. In terms of graphics, the motherboard features integrated AMD Radeon™ Graphics support with multiple display outputs including HDMI 2.1 and dual DisplayPort 1.4. It supports triple-display setups with resolutions up to 4K, making it ideal for creative professionals, video editors, and high-definition gaming experiences. Storage flexibility is another strong point, offering dual M.2 PCIe 4.0 slots and 4x SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 configurations for both SSDs and HDDs. This ensures speed, reliability, and storage expansion for different workloads. Connectivity is enhanced with Realtek® 2.5GbE LAN, multiple USB 3.2 Gen 1 and USB Type-C® ports, along with high-quality Realtek® audio codec for immersive sound. Smart Fan 6 technology, RGB lighting headers, and Q-Flash Plus support further boost usability and customization. Overall, the Gigabyte B840M DS3H motherboard combines advanced features with exceptional value, making it a reliable choice for building high-performance PCs in Bangladesh.

Availability and Usability:

The Gigabyte B840M DS3H motherboard is widely available in leading computer stores across Bangladesh and online platforms. Its Micro ATX form factor ensures easy installation in compact and standard PC cases, making it highly user-friendly for gamers, content creators, and professionals seeking reliable performance and seamless upgrade options.

Features:

  • Compact Micro-ATX design perfect for space-saving PC builds
  • Supports Intel 8th and 9th Gen processors for versatile performance
  • Dual DDR4 DIMM slots supporting up to 64GB high-speed memory
  • PCIe 3.0 x16 slot for high-performance graphics cards
  • Ultra-fast Gigabit LAN for stable online gaming and streaming
  • M.2 and SATA III slots for flexible and speedy storage upgrades
  • High-quality audio capacitors for immersive sound experience
  • Advanced thermal design to maintain optimal CPU and system temperatures
  • Easy BIOS updates with Q-Flash for hassle-free system management
  • Durable and long-lasting components for reliable everyday computing

Gigabyte B840M DS3H Motherboard Price in Bangladesh:

The Gigabyte B840M DS3H motherboard offers excellent value for money in Bangladesh, providing premium AMD B840 chipset features at an affordable price. Its competitive pricing ensures accessibility for both casual users and gaming enthusiasts, making it one of the most sought-after motherboards for high-performance builds.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

User Experience OF Gigabyte B840M DS3H Motherboard

Users enjoy smooth multitasking, high-speed data transfer, and stable gaming performance with the Gigabyte B840M DS3H. Easy BIOS updates, efficient thermal management, and multiple connectivity options enhance daily use, offering a reliable, responsive, and fully  customizable PC experience.

Why Choose This Product from Creatus Computer:

Creatus Computer ensures genuine products, fast delivery, and expert support for the Gigabyte B840M DS3H motherboard. Customers can enjoy warranty assurance, professional guidance, and seamless post-purchase assistance, making it a trusted choice for high-performance PC setups in Bangladesh.
