ASUS TUF Gaming B860M-Plus M-ATX Intel Motherbaord

Name: ASUS TUF Gaming B860M-Plus M-ATX Intel Motherbaord
Brand: ASUS
Availability: OutOfStock

Up Coming

ASUS TUF Gaming B860M-Plus M-ATX Intel Motherbaord

Stock: Up Coming
Model: TUF GAMING B860M-PLUS
Product id: 27989

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Intel® Core™ Ultra Processors (Series 2)
4 x DIMM slots, up to 256GB DDR5 memory
PCIe 5.0 x16 and PCIe 4.0 x4 expansion slots
Wi-Fi 7 and 2.5Gb Ethernet for superior connectivity

Basic Information
Supported CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B860 Chipset
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Memory
Slots	Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot
Supported Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
Graphics	1 x DisplayPort 1 x HDMI™ port* 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 4K@60Hz as specified in DisplayPort 1.4. *Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Connector & Ports
USB (s)	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 ports (1 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Supported Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers

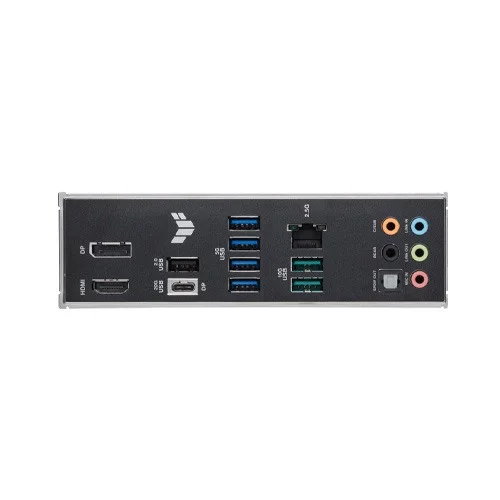

Internal I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
Software
Operating System	Windows® 11, Windows® 10 64-bit
Others
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Warranty Information
Warranty	3 Years

ASUS TUF Gaming B860M-Plus M-ATX Intel Motherbaord

The ASUS TUF Gaming B860M-PLUS M-ATX Intel Motherboard is designed for gamers and PC builders who seek a durable and high-performance motherboard for their systems. It supports Intel® Core™ Ultra Processors (Series 2) with an LGA1851 socket, providing cutting-edge performance and power efficiency. The Intel® B860 chipset ensures robust system functionality, while the motherboard features 4 DIMM slots that support up to 256GB of DDR5 memory with speeds up to 8800+ MT/s, offering impressive multitasking capabilities.Equipped with PCIe 5.0 x16 and PCIe 4.0 x4 slots, the ASUS TUF Gaming B860M-PLUS provides optimal expansion options for your graphics card and other peripherals, ensuring that you can upgrade your system for future demands. It also offers up to three M.2 slots and four SATA 6Gb/s ports for fast and versatile storage options, including support for RAID 0/1/5/10 configurations.Connectivity is top-notch, featuring a 2.5Gb Ethernet port for fast wired networking and integrated Wi-Fi 7 for wireless speeds up to 2.9Gbps. The motherboard also includes USB 20Gbps, 10Gbps, and 5Gbps ports, along with USB Type-C® for modern device compatibility. For immersive audio, it comes with Realtek 7.1 Surround Sound, ensuring rich, detailed sound in your gaming sessions.The ASUS TUF Gaming B860M-PLUS M-ATX Intel Motherboard is built to last with military-grade components, featuring TUF protection technologies like DIGI+ VRM, ESD Guards, TUF LANGuard, and overvoltage protection. With features like M.2 heatsinks, VRM cooling, and Aura Sync RGB, it is perfect for gamers who want reliability and style in their setups. Additionally, it comes with a 3-year warranty, offering peace of mind for long-term use.

Features

Intel® Core™ Ultra Processor Support: Compatible with Intel® Core™ Ultra Processors (Series 2) and LGA1851 socket for top-tier performance.
Advanced Memory Support: Features 4 DIMM slots supporting up to 256GB DDR5 memory, speeds up to 8800+ MT/s, and Intel® Extreme Memory Profile (XMP) support.
PCIe Gen5 & Gen4 Slots: Includes 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x4 slot for high-speed expansion.
Multiple Storage Options: 3 x M.2 slots and 4 x SATA 6Gb/s ports for versatile and fast storage configurations.
Wi-Fi 7 & 2.5Gb Ethernet: Wi-Fi 7 with speeds up to 2.9Gbps and Realtek 2.5Gb Ethernet for superior network performance.
Durability and Protection: TUF protection features like DIGI+ VRM, ESD Guards, and overvoltage protection ensure long-lasting reliability.
High-Quality Audio: Realtek 7.1 Surround Sound for immersive audio experiences, perfect for gaming.
USB 20Gbps & Type-C Ports: High-speed USB ports, including 1 x USB 20Gbps and 1 x USB Type-C® for modern device connectivity.
AURA Sync RGB: Customizable RGB lighting to match your build with addressable Gen 2 headers.
