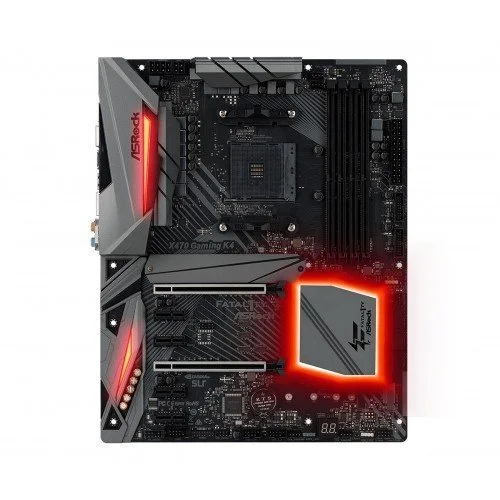

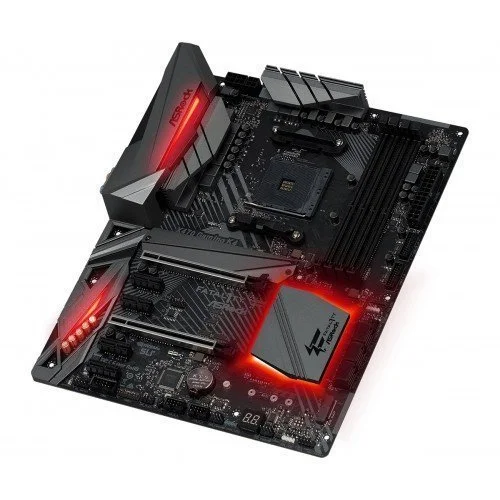

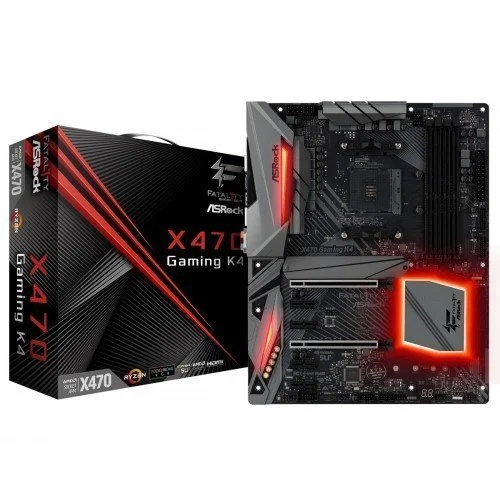

Asrock Fatal1ty X470 Gaming K4 AMD Motherboard

Asrock Fatal1ty X470 Gaming K4 AMD Motherboard

Asrock Fatal1ty X470 Gaming K4 Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge).Supports DDR4 3466+ (OC). 2 PCIe 3.0 x16, 4 PCIe 2.0 x1. NVIDIA® Quad SLI™, AMD Quad CrossFireX™. Graphics Output: HDMI. 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3). 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear).Intel® Gigabit LAN. Polychrome RGB

asrock fatal1ty x470 gaming k4 review

The ASRock X470 Master SLI/ac was a great board but the ASRock Fatal1ty X470 Gaming K4 is equally good too, just cost a little bit more at RM 719 but it comes with features that separates them apart. Now as you can see from the image above, they’re all alike (ASRock boards) when it comes to colors and design style, you’ll have to put them side by side to note the difference. On the upper right corner, ASRock’s signature style I/O panel cover and VRM heatsinks and what’s notable about this board is that it comes with 12 phase power design with premium 45A choke. As always the DIMM slot corner is something that’s nothing out of the ordinary. We’ll move on to the next area. Unlike the Master model, the Gaming model here comes with POST / DEBUG LED of which I find really hand when it comes to identifying component problems. The board comes with 2x M.2 sockets and the shorter one is at this corner, along with 6x SATA 6Gb/s ports, along with the rest of the connectors as expected. The Ultra M.2 socket here supports up to 22110 length component and it comes with a full coverage heatsink. 2x steel reinforced PCI-E slots that supports AMD Crossfire and Nvidia SLI with speeds at x8 / x8 when populated with 2 cards. As for the audio system, it uses 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) that supports Creative Sound Blaster™ Cinema 5 As for the rear the has the following, which is inclusive of the Fatal1ty mouse port. – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)* – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
