ASRock B850M Pro-A AMD Socket AM5 Motherbaord

Name: ASRock B850M Pro-A AMD Socket AM5 Motherbaord
Brand: ASROCK
Availability: OutOfStock

Up Coming

ASRock B850M Pro-A AMD Socket AM5 Motherbaord

Stock: Up Coming
Model: B850M Pro-A
Product id: 27951

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports AMD Socket AM5 Ryzen 9000
Dual Channel DDR5 Memory Technology
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Integrated AMD RDNA™ graphics

Basic Information
Supported CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset	- AMD B850
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory
Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Supported Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
USB (s)	CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Connectors - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

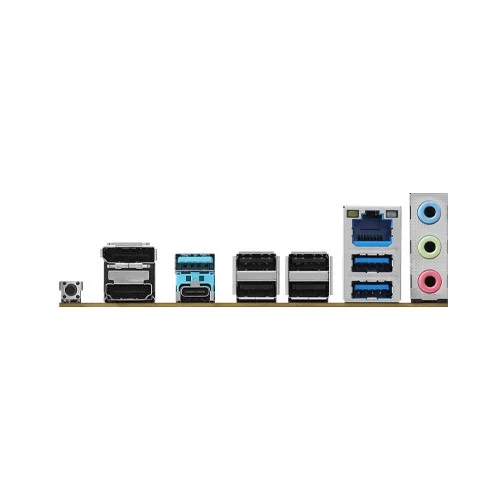

Internal I/O Ports	- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Warranty	3 Years

ASRock B850M Pro-A AMD Socket AM5 Motherboard

The ASRock B850M Pro-A AMD Socket AM5 Motherboard is engineered to provide powerful and reliable performance for users looking to build a high-performance PC. Supporting AMD's Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard is equipped to handle the most demanding tasks, from gaming to content creation. With PCIe Gen5 and Gen4 slots, it provides exceptional bandwidth for graphics and M.2 storage devices, ensuring faster data transfer speeds. This motherboard features dual-channel DDR5 memory technology, with four DIMM slots that support DDR5 memory up to 8000 MHz (OC), and a maximum system memory capacity of 256GB. It also supports both ECC and non-ECC memory, offering flexibility for users based on their needs. The ASRock B850M Pro-A motherboard is designed with cutting-edge features to enhance stability and overclocking potential, thanks to its 8+2+1 power phase and Dr.MOS for VCore+SOC+MISC.For superior connectivity, the motherboard offers 2.5G LAN, ensuring fast and reliable networking for online gaming, streaming, and data-heavy applications. It also features USB 3.2 Gen2 and Gen1 ports, including a USB Type-C port for high-speed data transfer. The inclusion of multiple M.2 and SATA ports allows users to easily expand their storage with NVMe SSDs and traditional hard drives. For graphics, the ASRock B850M Pro-A includes integrated AMD RDNA™ graphics support with DisplayPort 1.4 and HDMI 2.1 for up to 4K resolution at 120Hz. The motherboard also boasts 7.1 HD audio and an array of customization options with RGB LED headers and fan control.

Features

Supports AMD Ryzen 7000/8000/9000 Series processors
Dual-channel DDR5 memory up to 8000MHz (OC)
PCIe Gen5 and Gen4 slots for faster data transfer
2.5G LAN for high-speed networking
Multiple M.2 and SATA ports for storage expansion
7.1 HD Audio for immersive sound
Integrated AMD RDNA™ graphics with 4K support
Robust 8+2+1 power phase design for stability
RGB LED headers for customizable lighting
USB 3.2 Gen2 & Gen1 ports for fast data transfer
Micro ATX form factor for compact builds
