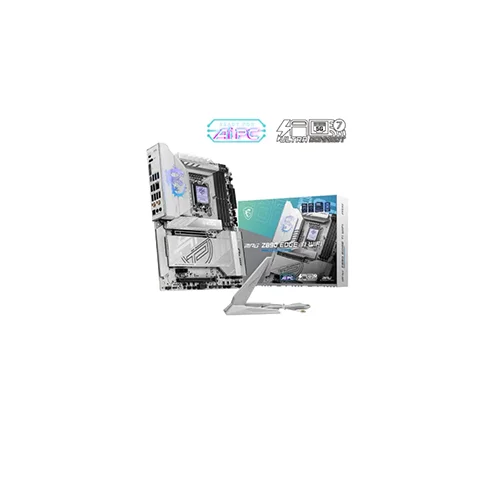

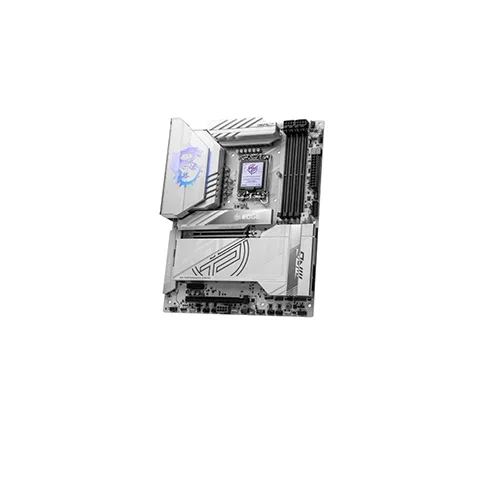

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

Save: 1501৳ (2%)

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

Stock: In Stock
Model: MPG Z890 EDGE TI WIFI
Product id: 28226

Based on 0 reviews. - Write a review

59,999৳

61,500৳

Ex Tax: 59,999৳

EMI starts at 21,040৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: 5x M.2, Intel Wi-Fi 7

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2)
Chipset	INTEL Z890
Form Factor	ATX (243.84mmx304.8mm)
Audio	Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
M.2 Socket	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
Memory
Type	DDR5
Slots	4x DDR5 UDIMM, Maximum Memory
Supported Memory	Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory	256GB
Graphics
Graphics	Graphics 1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

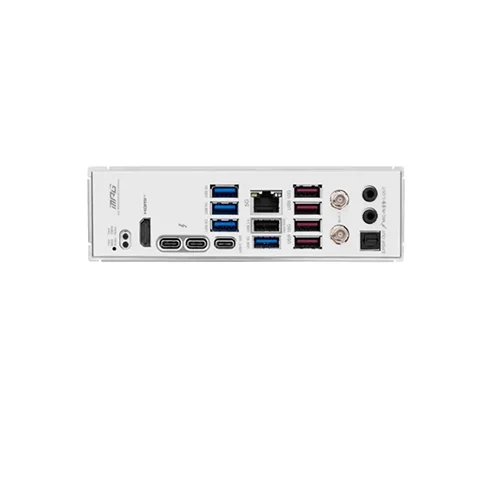

USB (s)	1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s)	1x Intel® Killer™ E5000B 5G LAN
Wireless Communication module	Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Others
Special Features	LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Warranty	3 year warranty

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is a high-performance platform tailored for elite gamers and PC enthusiasts who demand cutting-edge technology, speed, and connectivity. Built on the robust Intel Z890 chipset, this ATX motherboard supports the latest Intel Core Ultra Series 2 processors using the LGA 1851 socket, delivering next-level performance for demanding applications and gaming. Designed for DDR5 memory, it features four DIMM slots with support for up to 256GB of RAM and blistering speeds of up to 9200+ MT/s (OC). The board's memory architecture includes dual-channel mode, Intel XMP 3.0, and non-ECC, un-buffered compatibility, ensuring peak memory bandwidth and stability. Storage and expansion are standout features with five M.2 slots, including support for PCIe 5.0 x4 and PCIe 4.0 x4, offering lightning-fast NVMe SSD performance. In addition, it supports 4x SATA 6Gbps drives and comprehensive RAID configurations (0, 1, 5, 10) for both SATA and M.2 devices. Two PCIe x16 slots and one PCIe x1 slot offer flexible GPU and expansion card support, with Gen 5.0 and Gen 4.0 compatibility. The motherboard comes with extensive connectivity, including Wi-Fi 7, Bluetooth 5.4, and Intel Killer E5000B 5G LAN, providing ultra-low latency and high-speed wireless/wired networking. It includes Thunderbolt 4 Type-C ports with DisplayPort 2.1 support for up to 8K@60Hz visuals, plus a rich array of USB ports, including USB 20Gbps Type-C with 27W fast charging. Premium audio is delivered via the Realtek ALC1220P Codec, supporting 7.1-channel HD audio and S/PDIF output.
